Case Study: Phase Four Launches Scalable Electric Propulsion (EP) System with Xometry

This innovative California-based aerospace company is revolutionizing space exploration with Maxwell, its mass-producible EP system. Xometry is the manufacturing platform that’s bringing its exoskeleton from its 12-page drawing to life.

By Serena Ngoh · October 22, 2019

The Challenge

Much of the current technology behind satellites is based on a legacy electric propulsion system containing the Hall-effect thruster. This system, while robust and reliable, can take up to 1.5 years to build and is known to degrade in orbit after just two years. And since each system can cost upwards of $500,000, the return on investment for all buyers—from government contractors to the government itself—can be tenuous.

This is why Phase Four, an in-space propulsion startup based in El Segundo, California, set out to develop a new electric propulsion system with similar performance but at a cost that is an order of magnitude lower, thereby enabling mass produced satellites and large constellations. And by eliminating hard-to-source, life-limiting components, Phase Four’s EP system lasts much longer and enables longer missions.

Design Challenge

Phase Four surveyed the industry and found that electric propulsion systems often vary in their build and power due to different mission needs, such as whether a mission is short-term or long-term, the latter requiring greater reliability and dependability.

Phase Four aerospace engineer Austin Prater designed an exoskeleton for an EP system that delivers 6-10 mN of thrust and is sized to power a small satellite. The exoskeleton measures approximately 7” by 8” by 5” and is designed to hold various modular subassemblies, including the fluid and valve system, thruster head, and power electronics.

Unlike the Hall thruster, Phase Four’s RF thruster does not rely on expensive, difficult-to-source components like hollow cathodes. Finally, Phase Four designed its EP system with as few assembly components as possible to reduce the number of vulnerable connections that could malfunction during flight. This would increase rigidity, ensure easy assembly, and reduce upfront production costs. The company named its new, trailblazing product Maxwell.

A Xometry Solution: On-Time, High Quality, Certified Parts

Certified Parts

Phase Four looked for a certified manufacturer who could produce highly regulated aerospace parts. Phase Four chose Xometry because it meets every regulatory requirement with its ISO 9001:2015 and AS9100 certified network of suppliers. And amongst its aerospace suppliers, Xometry could offer Phase Four ITAR and EAR suppliers for other export controlled projects. Phase Four also chose to request certifications for material, hardware traceability, and compliance through Xometry's platform. “Xometry is great about providing the appropriate documentation that allows our customers to fly the parts,” says Prater. “We can look at a part and trace it back to the machine it was created on.”

One-shot Precision

Xometry manufactured seven key components for Phase Four. The most complex part was an exoskeleton for the EP system that was machined from a single billet of aluminum, reducing the total number of components, thereby eliminating vulnerable connections and increasing overall structural integrity. Xometry machined the lightweight chassis components to precision tolerances as specified by Phase Four, finished the parts with a protective chemical conversion coating, and installed threaded inserts where needed.

Phase Four exoskeleton flight component 1

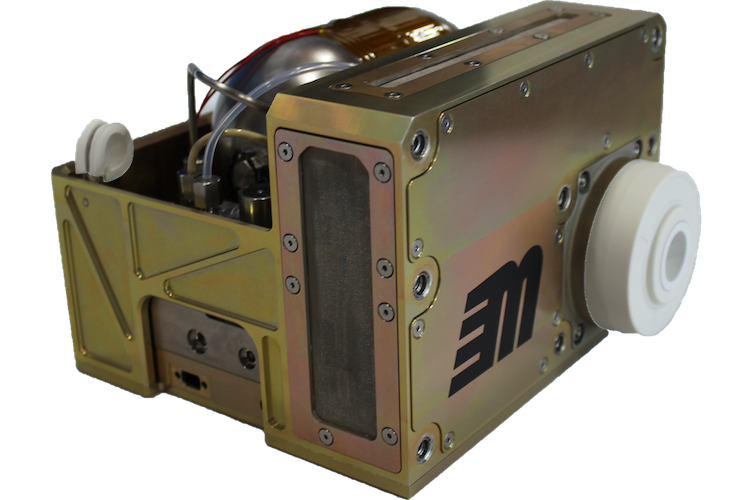

Pictured above: the unibody exoskeleton to Maxwell with all assembled components

The additional parts Xometry manufactured include a base plate, a front cover, and frames. These parts not only needed tight tolerances, but also had strict surface finish and flatness requirements. Xometry manufactured them exactly to spec, allowing Prater to assemble the product pain-free. Xometry’s aerospace manufacturing partners deliver parts with guaranteed complete precision because, as Prater puts it, “You only have one shot at putting a spacecraft in into orbit.”

Phase Four assembly flight component 1
Phase Four assembly flight component 2
Phase Four assembly flight component 3 Phase Four assembly flight component 4

Pictured above: four EPS components designed by Phase Four and manufactured by Xometry


A Vast Manufacturing Network

To communicate these exact specifications, Phase Four was able to upload not only a CAD model, but also a 12-page drawing to the Xometry Instant Quoting Engine℠ to convey the unusual complexity of the part. Because of the part’s complexity—even by aerospace industry standards—other machine shops had responded with no bids or failed to manufacture the part to spec. With Xometry’s massive network of manufacturing partners, finding a machine shop that was well-matched for the job was a breeze.

Additionally, Phase Four highlights Xometry’s ability to provide capacity relief by sourcing parts from multiple shops. This allows Phase Four to meet demand for high volume orders, and relieves Phase Four from supplier management since Xometry’s customer service goes far beyond the quoting page.

Speed

Phase Four needed a sales model of the electric propulsion system for an upcoming conference, and it needed the parts fast. In the past, the company had ordered the unibody housing from other suppliers with an 8-10 week lead time. With Xometry, the company quoted, ordered, and received the parts within 2 weeks. Prater says, “Xometry got our job done right and in a compressed time frame. That’s impressive.”

Where traditional EP systems have lead times of 1.5+ years, Phase Four has reduced the total lead time for its Electric Propulsion System to 6 months, and supply chain partners like Xometry will enable Phase Four to improve its lead times to 3 months. Xometry’s ability to source parts 5 times faster than its competitors will help Phase Four meet its aggressive product timelines.

“Xometry got our job done right and in a compressed time frame. That’s impressive.”
—Austin Prater, Aerospace Engineer at Phase Four

An Ongoing Partnership with Xometry

By utilizing Xometry’s manufacturing and supplier management services, Phase Four can meet its goal of bringing a mass-producible, cost-effective EP system to market. Not only does Xometry meet baseline legal requirements for producing parts for government contractors and agencies, but Xometry produces parts on time and to spec. Prater concludes, “You guys check all the boxes. Xometry is the only shop I’ve worked with for this project that has been able to meet all of our steep requirements. Documentation, consistently good coatings, on-time delivery—you name it.”

Additionally, using market-data pricing, Xometry helps Phase Four cut manufacturing costs so they can reduce the overall price of the product by 80% compared to traditional aerospace propulsion systems. This creates renewed business for aerospace product development companies like Phase Four, and increases the likelihood that other companies in the aerospace industry can bring innovative new space systems to reality.

Maxwell is available for purchase at http://www.phasefour.io/maxwell along with Maxwell specification sheet and early access pricing.

“You guys check all the boxes. Xometry is the only shop I’ve worked with for this project that has been able to meet all of our detailed requirements. Documentation, consistently good coatings, on-time delivery—you name it.”
—Austin Prater, Engineer at Phase Four
