Here’s How to Get Your Multi-Material Part Ready to Print

Our Project Engineers have been fielding a lot of questions lately about how we print multiple materials in PolyJet and how to get a file ready to upload for a multi-material part.

By Scott Kaplan · September 07, 2016

Our Project Engineers have been fielding a lot of questions lately about how we print multiple materials in PolyJet and how to get a file ready to upload for a multi-material part.
Polyjet (PJ3D) is one of the most versatile and advanced industrial 3D printing solutions available. To help answer your questions, we’ve created a quick post to show you how Xometry can print multiple materials in one part that can be used to simulate features like co-molded geometries.


PJ3D Sample part base
The main body
PJ3D Sample part front words

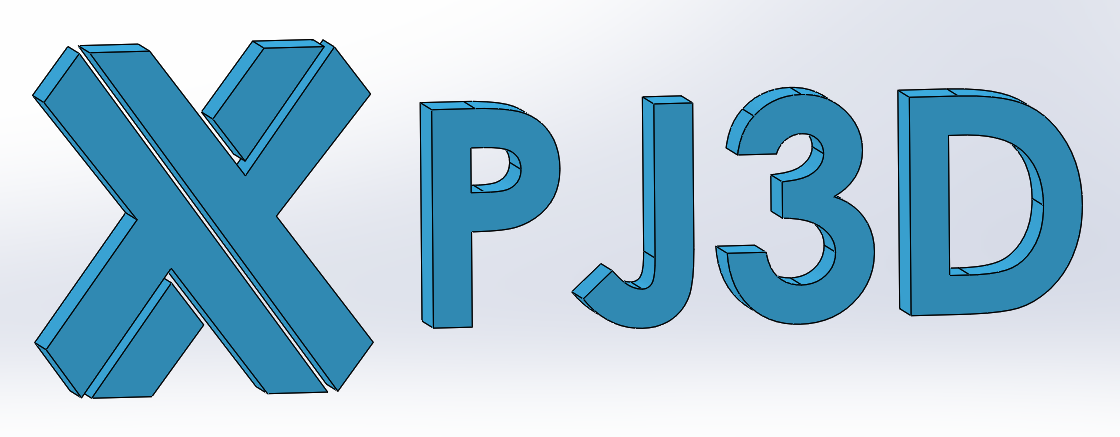

Extruded text front
PJ3D Sample part back words

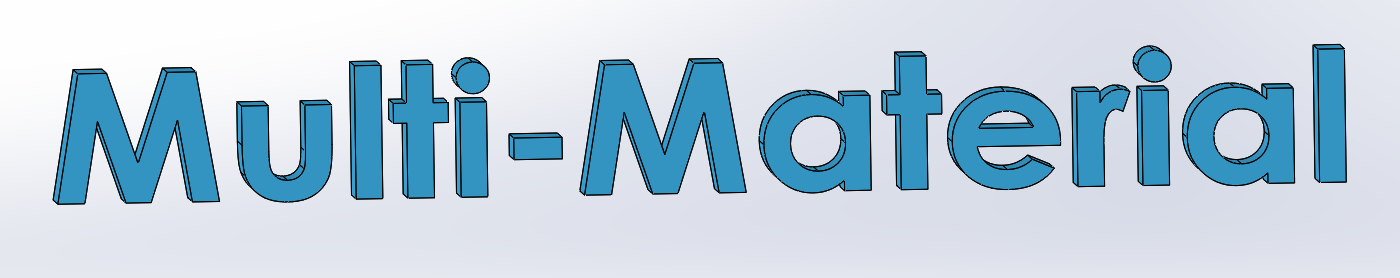

The extruded text back
PJ3D Sample part bumper

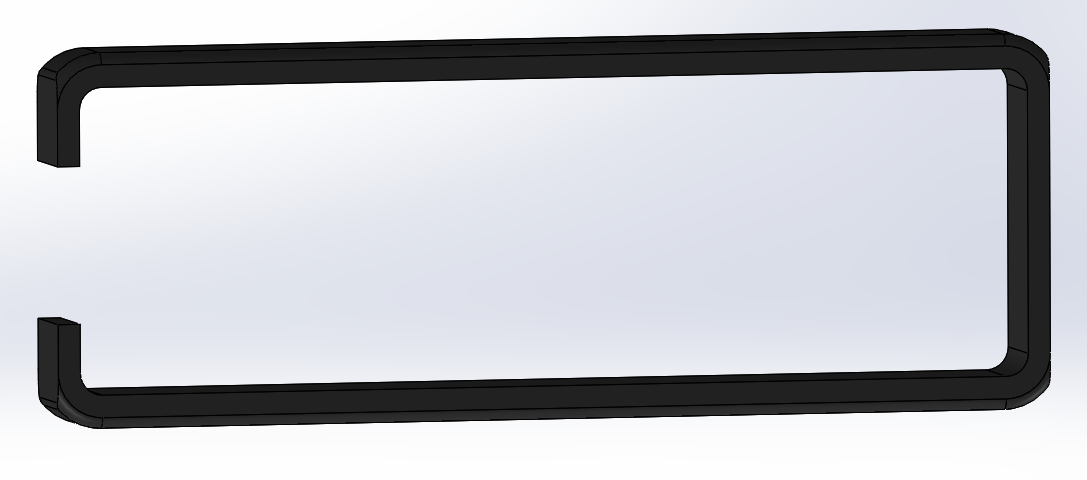

The outer bumper
PJ3D Sample part assembly

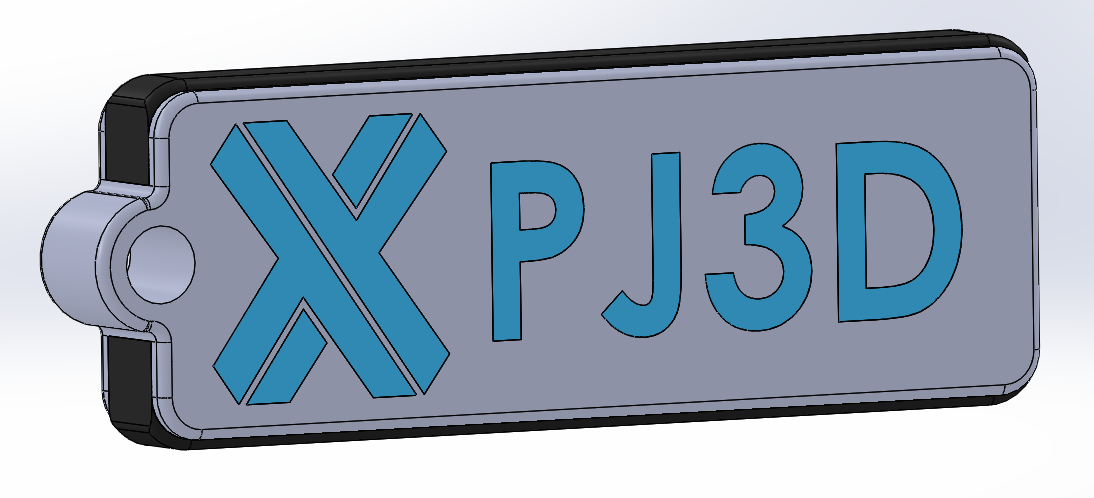

The Final Assembly File (Ready for .step export and upload)

How to Prepare Your File

Our machine operators can select and apply multiple materials to a single part as long as it has distinct shells. For example, the text in the images above actually are separate shells which we applied a translucent grey material. The outer border has a rubber-like material, and the main body is our rigid translucent/clear material. Here’s what it looks like from CAD.

If a part is to be printed in a multi-material, then the part is designed in CAD as an assembly. Each section of the part that is to be printed in a different material is created as its own part file, then integrated into the final assembly to make the multi-material part. Note: mated parts in the assembly should be flush to surfaces, any gaps will fill with support material and cause cosmetic or mechanical errors.

When the part is completed and ready for submission, Xometry recommends exporting the assembly as a .step file when uploading it to the instant quoting site. This allows all the parts to be contained and managed easily in a single file.

During production, parts are built just as a normal, single material PJ3D part, but with the print head depositing multiple materials at the same time instead of just one.

Posted in Manufacturability Tips
