Grinding Machine: Definition, Uses, Types, and Applications
Grinding machines are versatile tools used in various industries for material removal, shaping, and finishing. This article explores the definition, uses, types, and practical applications of grinding machines in engineering and manufacturing processes.
A grinding machine is a tool or piece of equipment used for removing material from a workpiece via abrasion. They typically employ rotating abrasive wheels to shape, smooth, or finish workpieces through grinding. The machining process uses abrasive particles to remove material from a workpiece's surface. As the moving abrasive particles come into contact with the workpiece, they function as minuscule cutting instruments, with each particle shearing off a small chip from the workpiece.
It's a frequent misconception to assume that abrasive grinding wheels remove material through a rubbing process. In reality, the process is as much a cutting action as milling, drilling, and lathe turning.
The grinding machine serves multiple purposes, including the initial shaping and final refinement of flat, cylindrical, and conical surfaces. It also excels at finishing internal cylinders or bores and crafting and honing cutting tools. The procedure eliminates rough projections from castings and stampings and also serves to clean, polish, and buff smooth surfaces. While it was originally designed primarily as a finishing technique, contemporary production-grade grinding machines now often handle both roughing and finishing tasks.
Grinders have very important roles across industries and manufacturing processes for several key reasons. They are indispensable for efficiently removing excess material from workpieces, shaping them to precise dimensions, and achieving smooth and uniform surface finishes. This precision and accuracy are particularly critical in industries like aerospace, automotive, and medical, where tight tolerances are essential for ensuring parts fit perfectly and function as intended. Grinders are also known for their versatility — they’re capable of handling diverse materials, workpiece geometries, and surface requirements. Their efficiency in material removal also makes them ideal for high-volume production runs, contributing to cost savings and shorter lead times.
The grinding machine is a tool that’s primarily used for finishing operations, distinguished by its remarkable structural rigidity. It uses grinding wheels composed of fine and exceptionally hard grains to execute precision grinding operations. This grinding process is essential for achieving the product’s desired shape and surface quality, as specified in the project's requirements. Typically, grinding follows roughing operations that remove the bulk of residual material from the workpiece. The subsequent grinding work eliminates any remaining excess material to create a finely finished surface.
Grinding machines come in various types, each tailored to specific processing needs. These include: grinding machines for flat surfaces, cylindrical and conical surfaces (both internal and external), centerless grinders, and specialized machines for grinding screws and toothed wheels.

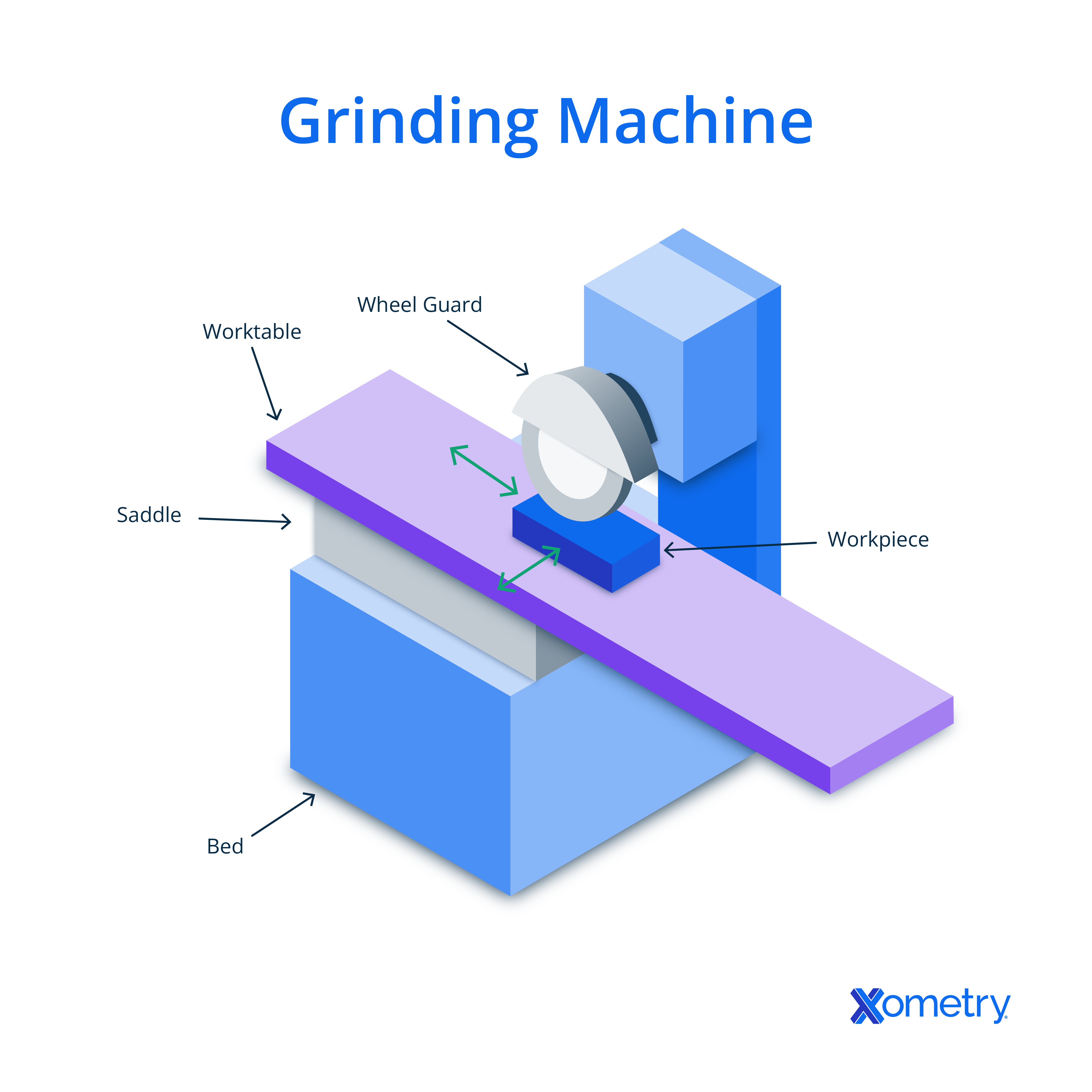

Structurally, a grinding machine comprises a base or pallet that supports the worktable and the vertical column. The bench houses mechanisms for controlling the table's longitudinal and transversal movement as well as a mount for the wheel spindle's motion. Longitudinal table movement is generated and controlled by an oleo-dynamic circuit, ensuring smooth and consistent motion despite gear transmission.
The wheel's motion may demand rotation around both horizontal and vertical axes. Vertical spindle orientation is suitable for quick and effective grinding using cup grinding wheels, although it may leave traces on the surface. In contrast, a horizontal spindle orientation utilizes disk wheels that, in addition to smoothing a part’s surface, can also machine longitudinal grooves and grooved shafts.
Grinding machines are the go-to tools to finish machining tasks with very exact surface specifications. A finely ground surface finish can meet both functional and aesthetic requirements. Additionally, these machines are adept at removing excess material, precisely shaping components, and ensuring consistent quality control. Moreover, different types of grinding machines cater to specific engineering tasks, such as: surface grinding, cylindrical grinding, and centerless grinding. With automation and CNC capabilities, grinding machines boost efficiency, minimize production time, and reduce labor costs, making them essential for engineering work. Additionally, grinding machines are indispensable in specialized engineering applications like thread and gear grinding.
Grinders are indispensable for machining items into precise shapes and giving them smooth surface finishes. Their ability to work with a wide range of materials makes them versatile. Grinders are efficient for high-volume production, ensuring consistency and uniformity in products. They play a vital role in maintenance, tool sharpening, woodworking, metalworking, and construction. DIY enthusiasts often use angle grinders for handheld tasks. Angle grinders excel at non-precision cutting, grinding, and polishing due to their high speed and handheld nature. They’ll also remove paint and rust from surfaces without damaging the underlying material. They are excellent for cutting materials like ceramic tiles and stone, leaving behind clean edges. Additionally, angle grinders make mortar removal easier and are adept at cleaning and cutting metal and even sharpening tools. For woodworking, they can be used to carve and plane wood.
Grinding machines help aerospace, automotive, and medical-sector manufacturers produce highly precise components (precision bearings, engine crankshafts, and medical implants like hip joints). They are integral to the metalworking industry for shaping and finishing metal parts, while in tool and die making, they craft and maintain cutting tools to exact specifications. Precision engineering, bearing manufacturing, mold and die making, and energy sectors all rely on grinding machines for critical components. Additionally, they find use in construction for surface preparation, woodworking for enhancing wood surfaces, and mining for mineral processing. Figure 1 below shows the global market share of grinding machines by application:
Grinding machines market share.
Image Credit: https://www.fortunebusinessinsights.com/industry-reports/grinding-machines-market-101950
There are many different types of grinding machines on the market, each with its own unique applications. Some common types of grinders include:
- Bench Grinder: A stationary grinding machine typically fixed on a workbench or table. It features either one or two grinding wheels and can be operated manually or with power. Bench grinders are commonly used for sharpening the edges of cutting tools and can be equipped with various grinding wheels for different tasks.
- Hand Grinder: This versatile style is typically not fixed to a workbench but is instead held and maneuvered by the operator. An example of a hand grinder is an angle grinder.
- Pedestal Grinder: Powered by electricity, this type is mounted on a pedestal frame that sits on the ground. These grinders typically have a grinding wheel on both sides of the motor shaft and are commonly used in workshops for sharpening cutting tools and cleaning parts after molding.
- Portable Grinder: Compact and electrically operated, portable grinders can be easily carried to different locations and are often used for tasks like cleaning heavy welds. Care should be taken when using portable grinders to avoid electrical shock.
- Flexible Grinder: This features an electric motor with a flexible shaft that allows the grinding wheel to be moved in any direction. This flexibility makes it suitable for large grinding tasks.
- Precision Grinder: As the name implies, this is a category of machines that are designed to achieve great accuracy and smooth finishes. They include various subtypes such as: cylindrical grinders, plunge cut grinders, form grinders, internal grinders, centerless grinders, surface grinders, universal grinders, and tool and cutter grinders.
- Cylindrical Grinder: This style is used to grind surfaces that have been made plain, such as: sleeves, pins, rods, and taper pins. Plain cylindrical, roll, and piston grinders are all considered cylindrical styles.
- Plunge Cut Grinder: These are used for grinding small shafts and often get referred to as crankshaft grinding machines. They’re also used for camshaft grinding.
- Form Grinder: Sometimes you need to grind a non-standard shape. Grinding wheels of different shapes are used on these devices to match the desired profile.
- Internal Grinder: These machines are designed for grinding round and hollow features, including cylindrical surfaces with different internal shapes.
- Centreless Grinder: Operated with electric power, this grinder supports the workpiece at three separate points, allowing continuous motion. It includes: throughfeed, infeed, and end-feed centerless grinding.
- Surface Grinder: Ideal for flat surface grinding, this type can use either rotary or reciprocating tables. Classified into rotary table and reciprocating table surface grinders, it is further subdivided into vertical spindle and horizontal spindle surface grinders.
When choosing a grinding machine, several factors come into play to ensure it aligns with your specific needs and intended applications. You should carefully consider:
- The type of grinding you need to perform — whether it's surface grinding, cylindrical grinding, or tool and cutter grinding.
- The materials you will be working with; some grinding machines are better suited for specific materials, such as: metals, ceramics, or plastics.
- The level of precision required for your work.
- The type, size, and composition of the grinding wheel.
- The machine's user-friendliness.
- Safety features like wheel guards, emergency stops, and safety interlocks.
- Machine specifications like the size of the grinding wheel, power requirements, speed, control type (hand-operated or CNC), and spindle orientation (horizontal or vertical).
- For high production rates, automation features like tool/nozzle changers, loading aids, closed-loop measurement, and the ability to house large quantities of parts should be considered.
- Effective coolant system to prevent overheating and maintain workpiece integrity.
- Ease of maintenance and availability of service and replacement parts.
- Reputable supplier or manufacturer known for producing reliable grinding machines and providing excellent customer support.
Grinding machines are versatile tools that can cut and shape a wide range of materials. Here's an overview of the materials that can be cut or worked using grinding machines:
Grinding machines are common in metalworking applications. They can cut, shape, and finish various types of metals, including: carbon steel, stainless steel, aluminum, brass, iron, titanium, Monel®, Inconel®, tool steels, and more. Metal grinding can give them precise dimensions, smooth surfaces, and sharp edges as necessary.
Grinding machines are used for concrete grinding and polishing. They are commonly used in the construction and flooring industries to level, smooth, and prepare concrete surfaces. This process is essential for creating polished concrete floors, removing surface imperfections, and exposing aggregates for decorative purposes.
Grinding machines are used to cut and shape ceramic or porcelain tiles. Tile grinders are equipped with diamond or abrasive wheels designed to cut through tile materials accurately and give them clean edges. These machines are commonly used by tile installers and manufacturers to create precise tile shapes and sizes.
Natural and synthetic stones such as granite, marble, quartz, and engineered stone can be cut and shaped using grinding machines. Stone fabricators use these machines to create countertops, sculptures, monuments, and architectural elements. Grinding generates smooth edges and polished surfaces in stone products.
Yes, a grinder can be used to cut fiberglass. Fiberglass is a composite material made of glass fibers embedded in a resin matrix. It can be cut using many tools, including angle grinders. To do so safely and effectively, you should choose an appropriate cutoff wheel or abrasive disc designed for cutting fiberglass. Mark the area you want to cut, secure the fiberglass in place, and then slowly guide the grinder along the marked path while maintaining even pressure. It's crucial to wear safety gear, control dust, and inspect the cut edge for smoothness and accuracy. Always work in a well-ventilated area to minimize exposure to fiberglass dust. Use proper safety precautions to protect your skin, eyes, and respiratory system.
Every type of grinding machine affects workpieces differently. Your selection can make all the difference. One key factor is the surface finish. Precision machines like cylindrical or centerless grinders excel in achieving smooth, precise finishes, ideal for high-precision applications. Bench grinders, on the other hand, produce rougher finishes suited for less critical work. The choice of grinding machine also influences the rate at which material is removed from the workpiece. High-material-removal-rate machines are often crucial for heavy manufacturing.
The accuracy of the final product also depends on the specific grinding machine. Precision grinding machines are engineered to meet the tight tolerances and high levels of accuracy demanded by aerospace and automotive manufacturing. Incorrect choices may lead to components failing to meet specified tolerances. Furthermore, the generation of heat during the grinding process is another important consideration, especially when working with heat-sensitive materials such as plastics or certain metals. Some machines feature cooling systems to counteract heat buildup.
Configuration aspects like grinding wheel type, speed, and direction of motion affect material removal patterns. Wheel characteristics like abrasive material, bonding agent, grain size, structure, and grade determine efficiency and surface finish quality. Different machines create distinct material removal patterns. For instance, a surface grinder yields flat surfaces, while a cylindrical grinder shapes workpiece interiors or exteriors. Incorrect choices may yield unintended patterns.
Grinding machines offer several advantages, including:
- They can achieve high levels of precision and accuracy.
- These versatile tools can perform a wide range of grinding operations, from surface grinding to cylindrical grinding, centerless grinding, and more.
- Some grinding machines are designed for high material removal rates. This leads to increased productivity and shorter processing times.
- They excel at producing smooth and fine surface finishes.
- Grinders provide consistent results, ensuring that each machined component meets the same quality and dimensional standards.
- Many grinding machines feature cooling systems that help manage the heat generated during grinding.
- Some types can be automated with computer numerical control (CNC) systems.
While grinding machines offer various advantages, they also come with certain disadvantages that need to be considered:
- They can be expensive to purchase, set up, and maintain. The initial investment includes: the cost of the machine, tooling, and grinding wheels. Additionally, operational costs such as electricity, coolant, and maintenance can add up over time.
- They often generate substantial noise and vibration. Adequate safety measures and personal protective equipment are essential to mitigate these issues.
- You’ll end up with dust and particulate emissions, especially when working with materials like metals and composites.
- The friction between the grinding wheel and the workpiece generates heat which can lead to thermal damage, especially when working with heat-sensitive materials.
- Grinding may not be the most efficient method for removing large volumes of material from exceptionally hard materials like ceramics and superalloys. This can slow your processing times.
It’s difficult to give an exact price range for grinding machines since the prices for different machines vary dramatically. The price also depends on the specifications of each machine.
The cheapest grinding machines are usually hand-held types which run anywhere from $50 to a few hundred dollars. Bench grinders are next in line and can also be purchased for a few hundred dollars. However, CNC grinders are the most expensive ones on the market, with some cylindrical grinders costing between $300,000 and two million dollars. A centerless grinder can also sell for over $80,000.
The prices of grinding machines can vary significantly based on several key factors. Firstly, the type and size of the machine play crucial roles; smaller, simpler machines like bench grinders are more affordable than larger, specialized CNC grinding machines. Features also impact pricing, with machines equipped with advanced capabilities such as automation and precision controls typically costing more. Brand reputation and quality also factor in, as well-established brands with good track records for quality often command higher price tags. Machine condition matters, with new machines being pricier than used ones. Power, capacity, precision, tolerance levels, and accessories can all contribute to price differences. Additionally, service and support, market demand, customization, and geographic location can impact the overall cost.
It depends. The cost of grinding machines can vary widely depending on several factors. Grinding machines come in various types and sizes, from small affordable bench grinders to large, specialized, and extremely pricy industrial CNC grinding machines. Whether they are considered expensive for your company largely depends on the intended use and your budget. For individuals or small businesses with limited grinding needs, basic and affordable options may suffice. On the other hand, industrial applications requiring precision and high production rates often necessitate more expensive, specialized machines. The price can also be influenced by factors such as: features, precision, brand reputation, and whether the machine is new or used.
Some safety guidelines must be followed to prevent injuries.
Always wear safety goggles when operating a grinding machine. Before mounting, the grinding wheels must be checked for cracks using the ring test. Never exceed the recommended speed for grinding wheels. Do not adjust the workpiece or any mounting devices while the machine is in operation.
Ensure that the depth of cut for both the grinding wheel and the machine does not exceed their recommended limits. Remove the grinding wheel from the workpiece surface before turning off the machine. Utilize appropriate wheel guards on all grinding machines. If working with bench grinders, adjust the tool rest to be 1/16 to 1/8 inch away from the wheel.
Yes, grinding machines can be dangerous if used improperly and without proper safety precautions. Firstly, high-speed rotating parts — especially the grinding wheel — can shatter or break during operation. Therefore, operators and nearby personnel should consistently wear appropriate safety gear like eye protection and face shields to safeguard against flying debris. The rotating parts can also cause injuries if care is not taken when working with a grinder.
Secondly, the noise and vibration generated by grinding machines can lead to long-term hearing damage. Proper personal protective equipment (PPE) should always be in place to mitigate these risks. Additionally, grinding operations often generate dust and, in some cases, harmful fumes, posing a risk to respiratory health. Adequate dust extraction systems and ventilation are thus essential. Lastly, electric shock hazards exist if the equipment is not used correctly or if electrical components are damaged, emphasizing the importance of following safety procedures and inspecting machinery for faults before operation.
Alternatives to grinding machines depend on the specific machining or finishing task. Some common alternatives include: milling machines, turning machines, electrical discharge machining (EDM), waterjet cutting, laser cutting, abrasive blasting, chemical etching, and ultrasonic machining.
This article presented grinding machines, explained them, and discussed the various type and uses. To learn more about grinding machines, contact a Xometry representative.
