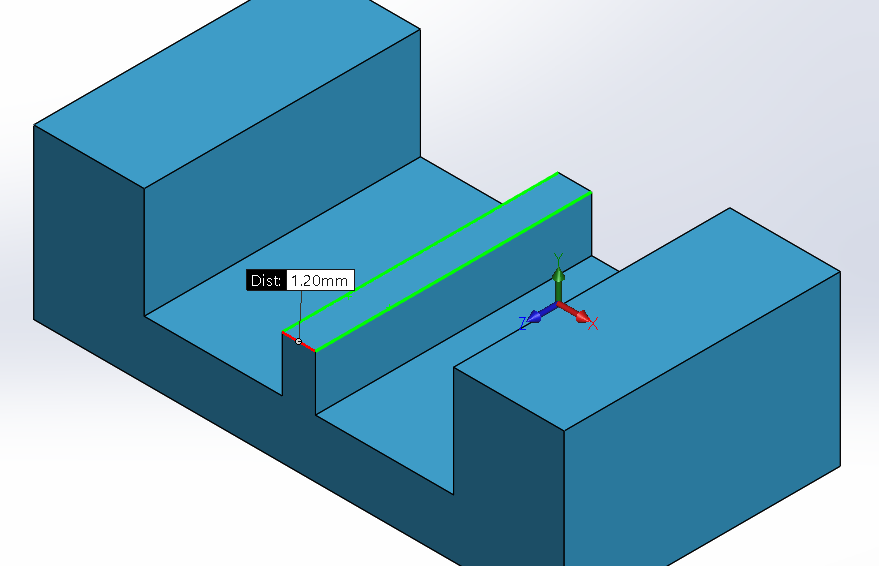

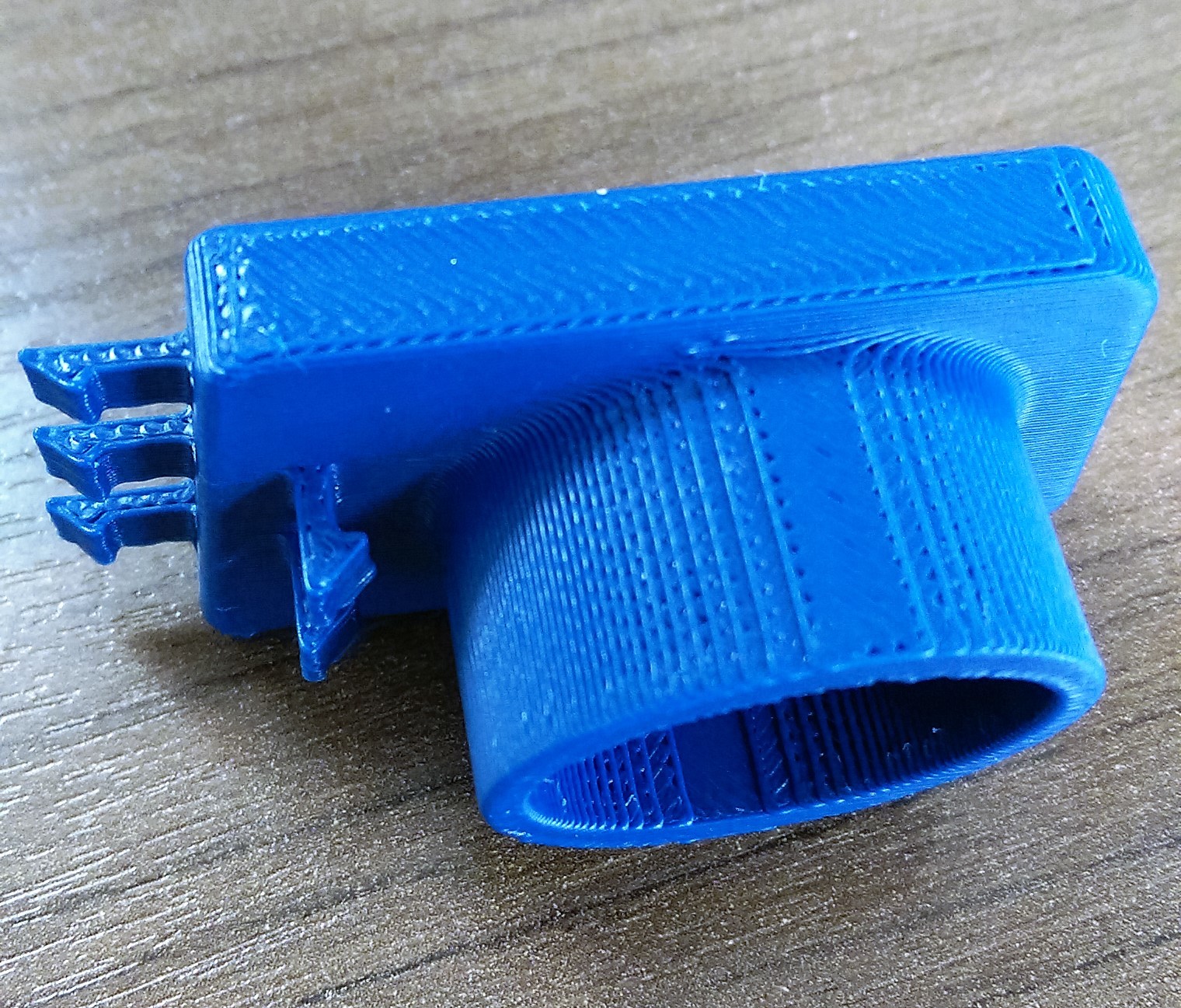

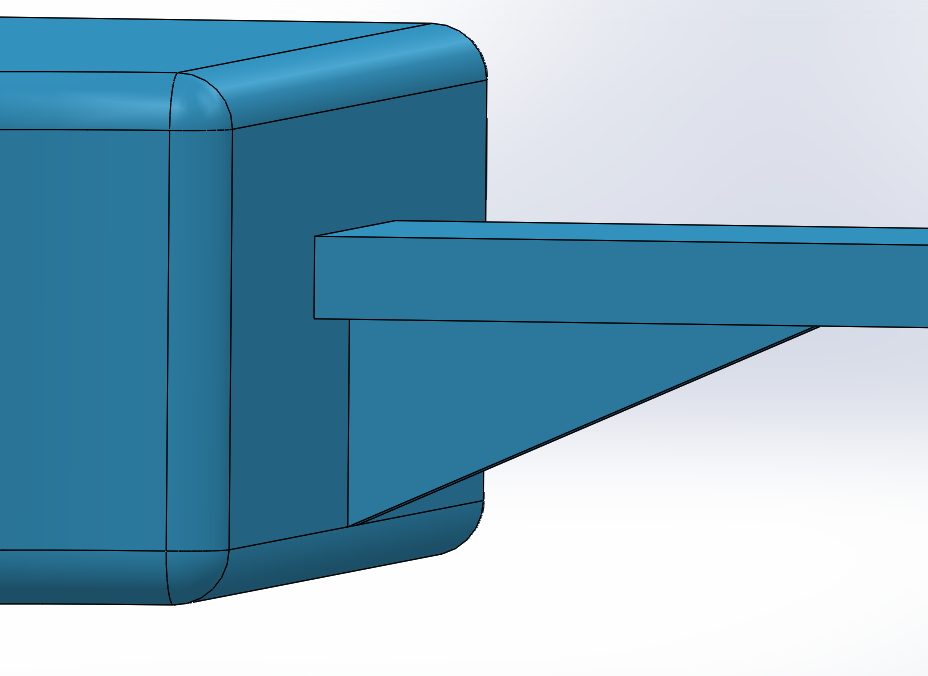

FDM Mini-Guide

Fused Deposition Modeling (FDM) is an additive manufacturing process in which a machine precisely extrudes melted plastic filament to create a part.

By Marcus Morrissette · August 31, 2016

Fused Deposition Modeling (FDM) is an additive manufacturing process in which a machine precisely extrudes melted plastic filament to create a part. The filament is extruded out of a heated end, laying down in a zig-zag pattern to create the shape of the part from the bottom to the top. FDM technology can be used for rapid prototyping and is widely known for its speed, accuracy, and competitive cost. Parts are very rigid, especially compared to Selective Laser Sintering (SLS), which makes them a great fit for projects with a rigidity requirement.

Our FDM Mini-Guide provides information on tolerances and specific design features.

wall thickness

Wall Thickness

3D printers produce parts by successively layering material. Wall thickness is limited by the filament size, and features thinner than twice the filament’s thickness usually do not print successfully.

Features with only one layer of filament are weak and inaccurate. For supporting structures, walls need to be at least 0.047” – 0.06” (1.2 – 1.5 mm) thick for best results by allowing filament to fill between layers.

Walls without closed profiles such as lines are also less resolved compared to those such as circular and closed loops. As a result, thinner, more circular walls are closer to design intent than those with straight walls.

fdm orientation


Orienting parts in FDM has an enormous impact on its overall strength and appearance, especially for fine and concentric features. Concentric features resolve best when layers print parallel to the xy-axis. Many fine features (e.g. tabs) are stronger when printed parallel to the xy-axis as well.

Designing a part so that fragile and concentric features grow in the same direction will help determine the best orientation for a part to print.

hole orientation


Xometry recommends that holes for FDM be designed with a diameter greater than 0.04” (1mm) to retain a circular shape. Orientation of holes is very important and resolution tends to be best when printed parallel to the xy-axis. This is because holes are outlined with concentric circles of filament versus staggered stops between layers. To increase the accuracy of through holes, Xometry may drill out holes during post-processing.

fdm text part

Text & Small Details

Text and small details are very difficult to print in FDM because many small features do not register in the printing process when they are below certain tolerances such as the filament’s thickness. Recommended thickness that protruding text must maintain is at least 0.04” (1mm) to register properly. Text must also have a height of at least 0.04” (1mm), but 0.047” – 0.06” (1.2 – 1.5 mm) is recommended to be legible and avoid unexpected errors, which will allow multiple layers of filament to stack on top of each other and reduce the risk of breakage. Cut-out text must also hold these tolerances to resolve properly. Be sure to use regular or larger text fonts, but stay away from more condensed and smaller fonts. All text must also be oriented parallel to the xy-plane for best results, because it will allow multiple layers to stack cleanly and avoid “squished” characters and details.

For more information on this subject, check out our “Wicked-Small Cylinder Test.”



Tabs are very susceptible to breaking in FDM, especially for larger parts. The first thing to do would be to increase the size of the tab as large as possible (size depends on the application and size of the overall part).

Orienting tabs parallel to the xy-plane will also increase the strength of the tab and reduce the risk of breakage. Integrating a replaceable tab design is another great way to use tabs in FDM, so that tabs may be printed separately in the best orientation then inserted Tab orientation post-processing.



Another great alternative to fillets for increasing the strength of support structures is by adding ribs. This is because ribs distribute the force applied to a structure to a greater surface area. It is important to follow tolerances outlined in the wall thickness section when creating ribs to ensure that they aren’t too thin and either break or don’t register during printing. For this reason, a safe minimum rib thickness to follow is 0.06” (1.5 mm) to allow multiple layers of filament inside of each rib.

Posted in Additive


About Xometry

Xometry is your one-stop shop for manufacturing on demand. Xometry works with 32% of Fortune 100 companies, offering 24/7 access to instant pricing, expected lead times and manufacturability feedback. Xometry’s nationwide network of 4,000+ partner manufacturing facilities guarantees consistently fast lead times across a broad array of capabilities, including CNC Machining, 3D Printing, Sheet Metal, Metal Stamping, Die Casting, Extrusion, Urethane Casting, and Injection Molding.

Featured Content

Pros and Cons of Shops, Service Bureaus, and Manufacturing Networks

Whether deciding between individual shops, service bureaus, or all-in-one manufacturing networks, here’s what to look for when deciding where to bring your parts.

Read on

Our Ultimate Guide to Manufacturing Across Your Product Development Cycle

While many companies claim to provide manufacturing on demand, very few come close to Xometry when it comes to truly delivering against scalable capacity of production-as-a-service, fast turns on quoting and production, and uncompromising high-quality products.

Read on

The X-Tiles Video Series: Clear and Nickel-Plated 3D Prints, Pt. 3

Watch our video series, the X-Tiles, to help you distinguish between our 3D printing processes. In this release we're comparing nickel-plated prints and "clear" 3D printed parts to help you choose the best process for your project.

Read on
