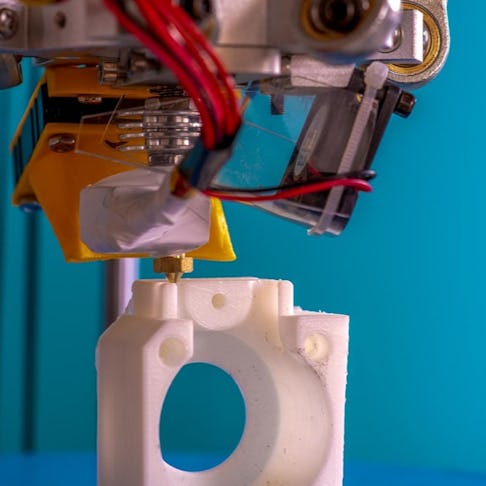

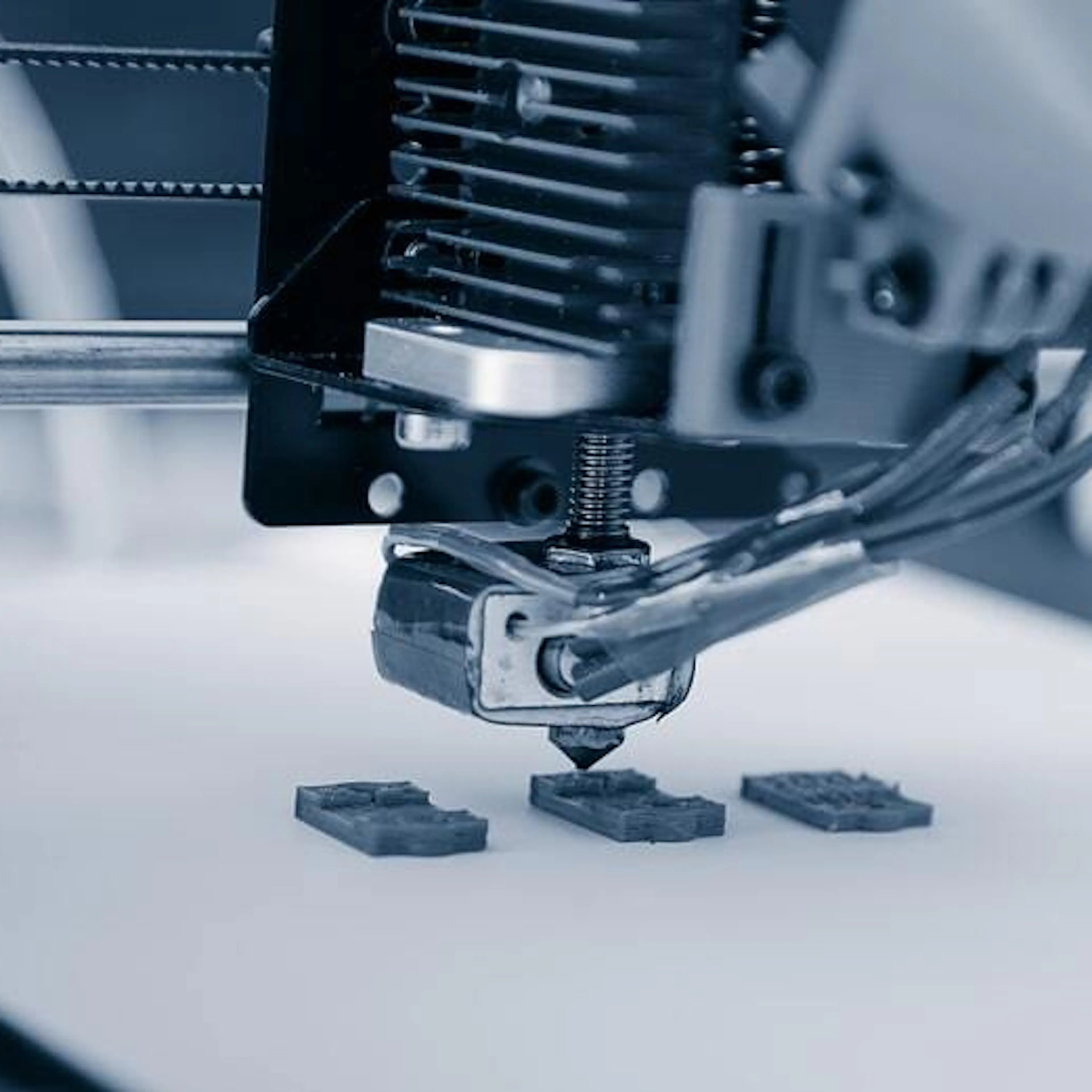

3D Printing a plastic part. Image credit: luchschenF/Shutterstock

Everything You Need to Know About 3D Printing

Xomety X
By Team Xometry
 44 min read
Polystyrene Uses, Features, Production and Definition
May 21, 2022
 9 min read


Slide 1 of 1
  • Plastic HP Multi Jet Fusion - 3D Printed parts

3D printing, or additive manufacturing, is an umbrella term for manufacturing technologies that can generate parts by growing them out of base material. This differs from subtractive manufacturing, such as CNC machining, where a bulk material is reduced to its final shape through cutting or forming.

3D printing is a powerful tool for generating custom parts, often with complex geometries, and serves industries from aerospace & defense, to automotive, to medical and dental, and beyond.

This guide outlines 3D printing, its basics, getting started, and the top commercial 3D printing processes and materials used today.

What is 3D Printing?

3D printing is a manufacturing process where materials are joined together to make objects from 3D model data (CAD). Typically, 3D printing is a layer-by-layer process where part geometries are “grown,” fusing with the previous layer. 3D printing processes can build objects in plastics, photopolymers, reaction polymers, composites, metal, glass, and other materials.

This is contrary to subtractive, or traditional manufacturing, such as CNC machining, where a part is made through the reduction of a stock material through cutting, bending, shaping, etc. Due to the layered process of 3D printed parts, there are typically surface finish differences between prints and traditionally manufactured components. Most notably is a less smooth surface, with step-like features visible in the direction of growth. Another way to think about how 3D printing works is that it interprets a 3D model, acting as a digital twin, and does its best effort to reproduce the part features, building from the bottom to the top.

3D printed components, or those made on a 3D printing or additive manufacturing platform, are best known for their viability in small-batch manufacturing, also known as prototyping. This is due to the flexibility that 3D printing offers over traditional manufacturing, without requirements for specialized fixtures or labor-intensive setups. Over the last 5 years, there has been a spike in 3D printing used for end-use production components, from aircraft ducting to medical implants to commercial goods.

3D Printing Versus Additive Manufacturing

The term “3D printing” is often used synonymously with “additive manufacturing.” That was not always the case. 3D printing and 3D printers in 2007 would have been describing desktop hobbyist machines that extruded material or plastics. Many industrial users of additive manufacturing during that time used the term “rapid prototyping,” or RP, to describe processes like laser sintering or binder jetting processes. Over the last decade, the term 3D printing has gained significant popularity due to the prevalence of desktop printers and the Maker movement. Due to its popularity in the media, the terms are now used interchangeably in conversation--particularly in marketing materials. However, most industrial processes still prefer using additive manufacturing, or AM, as a more professional term encapsulating the potential of these processes to be another valuable tool on the production floor.

Other terms for 3D printing are additive fabrication, additive processes, additive techniques, additive layer manufacturing, layer manufacturing, and freeform fabrication.

black fdm ultem
Advantages and Disadvantages of 3D Printing

A Brief History of 3D Printing

Additive manufacturing has its roots in the early 1980s, with the first patent filed by Dr. Hideo Kodama in Japan in 1980, though it was not granted due to him not submitting the full application within one year. Four years later, in 1984, a patent for stereolithography (SLA) was filed by Chuck Hull. Chuck Hull later founded 3D Systems and is the inventor of the STL mesh file format still used across most 3D printing platforms. Stereolithography was a process of building parts by selectively curing resin layer-by-layer, building a 3D geometry one cross-section at a time. The UV-sensitive resin reacts to a UV-laser, causing it to harden where hit.

In 1987, Carl Deckard filed a patent for Selective Laser Sintering which was later granted in 1989. Selective Laser Sintering (SLS) was a process of fusing fine plastic powder in a heated build chamber with a laser. SLS offered more versatility for end-use products because it used a thermoplastic, nylon, as its printing material. Following in 1988 was the invention of Fused Deposition Modeling (FDM) by S. Scott Crump who founded Stratasys. This patent was granted in 1992. Also in 1989, the company EOS was founded. EOS, Stratasys, and 3D Systems to this day still remain key players in the additive manufacturing space.

Between the early 90s and 2000s more technologies were invented and innovated. This included Solidscape’s resin printing for lost wax casting, Z-Corporation’s binder jetting process for sandstone-like parts, Helisys offered paper-based layered object manufacturing, and Arcam’s electron beam melting process for metals. During this time another staple 3D printing process was developed--Selective Laser Melting (SLM). SLM is synonymous with direct metal laser sintering (DMLS coined by 3D Systems), LaserCusing (a term by Concept Laser), and direct metal laser melting (DMLM).

Many of the core services companies for 3D printing, beyond the OEMs, were founded in the early 2000s. Most of which used SLA, FDM, SLS, and DMLS for service parts. 2005 marked the beginning of ExOne, a spin-off of Extrude Hone Corporation, which combined inkjet binders and metal powder to commercialize binder jet metal printing, an alternative to SLM. In 2009, the first MakerBot printer was introduced. MakerBot was a new class of “desktop printers” which were low-cost and adopted by hobbyists and makers. Desktop 3D printing’s popularity helped introduce more people to 3D CAD design, and in turn, the market responded by making more accessible CAD software.

In the last decade, between 2009 and 2019, many of the original patents from 3D Systems, Stratasys, and other founding companies have expired. With the expiration of key patents, many other 3D printing companies have emerged in both the professional, consumer, and mid-range “prosumer” 3D printing space. A multitude of service companies, offering 3D printing services have been founded. 2011 marked the founding of Formlabs, makers of the first consumer-version SLA 3D printer. In 2013, Markforged was founded around a prosumer filament printer that could embed continuous carbon fiber or kevlar between layers for increased stiffness. In 2015, Desktop Metal debuted with a metal 3D printer using FDM-style extrusion with plasticized metal rods to produce metal parts. Markforged also produced a system with a similar approach to printing metal at this time.

In 2013, MakeXYZ was founded to connect consumer desktop 3D printers with users that needed parts. Xometry was launched in 2014 with the goal of instantly pricing 3D models for various professional manufacturing technologies, including additive manufacturing and CNC machining services. Xometry built a business model now known as Manufacturing as a Service, or MaaS, which utilizes partner manufacturing companies to fulfill manufacturing projects purchased through Xometry’s service. In 2019, Xometry launched its Supplies and Finishing services, with the approach of empowering manufacturers and partners alike with on-demand e-commerce services. Introducing MaaS via 3D printing services allows for a single space to connect work to thousands of capable manufacturers with a large portfolio of capabilities.

3D Printed Carbon Part
Trends in 3D Printing

Anatomy of a 3D Printer

Below are some features and terminology which outline the basic mechanics of a 3D printer.

Build Area, Build Platform, Build Bed, Part Bed, Print Bed


The effective area on which a part can be built on the 3D printer. This consists of the planar area where material is deposited each layer, or the X- and Y-axis, and the amount of vertical travel in which material can be cured, fused, or deposited, or the Z axis.


Frame, Carriage


The mechanical body of a 3D printer. Typically made of metal extrusions, the frame must be extremely stable to maintain accuracy in the printed parts. 3D printing frames hold the build platform, heaters, gears, screws, pulleys, material feeds, and other critical components for producing 3D printed parts.This is not to be confused with exchangeable frames, which typically reference modular, interchangeable, build platforms used in industrial additive manufacturing machines for higher throughput.




A computer commanding other digital and analog devices on the 3D printer in order to operate in tandem, generating the part. The controller interprets the data input to the machine.


Nozzle, Extruder, Hot End, Print head, Tips


Typically associated with fused deposition modeling (FDM), or fused filament fabrication (FFF), these are assemblies with conical heated tips in which a filament raw stock is fed through, melted, extruded, and deposited on a print bed. Nozzles can have differing diameters based on the desired layer height and bead thickness to be deposited.


Laser, Scanner


This generates an infrared (IR) or ultraviolet (UV) beam used to harden parts from a base material. IR lasers, typically from a CO2 laser, are used for processes that require melting plastics or metals. UV lasers are typically used for curing photopolymer resins.Laser-based 3D printers can control the location and direction of the beam using mirrors and galvos, which is most common, or linear motion. A galvos laser scanning system is significantly faster than a linear system, but is also more complex and expensive. Each system scans the cross section of a 3D part for that layer progressively using rapid back and forth movements. Different scanning approaches can be used for different materials; for example, a selective laser melting system may scan in small islands of material to help control stress buildup on individual layers.


DLP, UV Projector


A digital light projector is typically used in photopolymer-based printing. DLP 3D printers project a single cross-sectional image of a part on the build platform to cure a large portion of material at once. This is faster than UV laser based systems, like typical SLA platforms, which require rapid back and forth scanning to cure a layer. Carbon DLS uses a DLP with a continuous movement of the Z direction to build isotropic features on 3D printed parts.


Build Chamber, Build Frame


An enclosed area in which the part is printed. This can include the build bed, material feed, extruders, or laser and galvos systems. At the start of a print, the build chamber will have the part bed at its minimum condition, with space to allow the part bed, or the linear extruder, to move in the Z-axis as the part or parts are produced.


Exchangeable Frame, Interchangeable Frame


A removable compartment inclusive of the build area used in production additive manufacturing. A fresh frame can be swapped-in to print the next job while the previously finished work moves to post processing. This is used widely in laser powder bed fusion platforms like SLS, DMLS, and HP MJF.


Electron Beam


A process where electrons are accelerated at high velocity and concentrated in a narrow beam to create heat. This process is used in metal 3D printing via electron beam melting (EBM). Electron beams can be controlled by changing magnetic fields, without the requirement of a galvos or linear motion system found in laser-based platforms.


Material Feed, Hopper


The source of material, both for part and support structure, that is fed into build area. Material feeds may require extruders for filament-based systems, like FDM, or use measured material dosage for powder bed platforms. In powder bed systems like SLS or DMLS, material is typically gravity fed or introduced via a vertical piston feed and recoater.


Overflow Bin, Material Overflow


A container that holds excess material during the building phase. For material jetting or filament systems, this may be to carry scrap material for disposal. For powder bed and photopolymer systems, the material is often stored in a controlled environment for reuse or recycling.


Data Input


The interface in which the digital information from a build setup, such as layers, machine controls, and other build data, is input into the controller. Very often data is prepared on a separate computer and communicated through a data input such as a USB, ethernet, wifi, or serial connection.


Linear Motion Control


A belt, pulley, screw, servo, or actuator controlled portion of a machine frame that moves portions of the 3D printer in the X-, Y-, or Z-axis. Some printers may move the print head in X and Y directions, while the build bed moves vertically in the Z direction. Others may use linear controls to deposit material in the build area or remove excess material to overflow bins.


Support Structure, Support Material


Material used to bond a part with the build platform as well as create a structure for material to weld, or deposit on, when achieving overhanging areas during 3D printing.


Temperature Sensor


A monitor for temperature, often an IR sensor or thermocouple, which relays feedback to the controller for heat regulation.


Bed Leveler, Bed Leveling


Common for desktop-style printers, this is typically an automated mechanism to measure travel distance between the print head and the build platform in different regions. Once measured, the machine compensates small differences on the printing plane which could otherwise cause an inconsistent or failed print.


Material Jet


A depositing head, similar to an inkjet, which rapidly and accurately places microdroplets of material while moving in a linear direction. The deposited material could be for building the part directly, such as in PolyJet, adding color or reactive agents, or for binding powdered material together in a green state before secondary processing.


Part, Object, Print, Workpiece


The physical product being made in the 3D printer. Typically this is differentiated from sacrificial support structure which may also be printed on the build bed.


Recoater, Roller


A mechanical blade or cylinder which moves from one end of the build chamber to another, moving material across the build area as well as excess into overflow bins. Recoaters are a key source of build failures on powder bed systems like DMLS, SLS, and HP MJF--often due to part features deflecting upward in the recoater’s path, getting caught and dragged across the print area.


Build plate, Build sheet, Build Surface


A removable portion of the build bed which can be used to swap out for resetting the 3D printer for a new print. Build plates and sheets also are important for 3D prints which require support structure, acting as the first layer for the build material to bond with. Any failure of bonding with the part at the build plate is another key cause of part defects.


Build setup software


Most 3D printing platforms have unique build setup software to prepare a mesh file, such as an STL, for 3D printing. STL files can be repaired, often automatically, by fixing gaps in the mesh and repairing reversed or broken features. A printable file is often called a “watertight” file, where the mesh geometry is contiguous across its surface. This software can act as a digital twin for the printer by orienting the object on a virtual build platform, produce supports as necessary, change infills, and simulate building. The build simulation can help estimate timing and identify any potential issues before printing. Multiple parts can be set up on one build platform before being exported data the 3D printer can interpret through its data input. The process of simulating the build and exporting the data is often called “slicing” due to the layer-specific information created. Common commercial build setup software is Materialise Magics or Netfabb. This software can be used for multiple professional platforms. Each platform can add more robust options like custom support generation and optimized build nesting for powder bed platforms.

Although each 3D printing process has different mechanisms to make parts, there are many shared fundamental features that are part of additive manufacturing machines. 3D printers can build one or many objects at the same time. The output and size is dependent on the platform and specific process.

Desktop Versus Industrial 3D Printers

Slide 1 of 1
  • Industrial 3D printing

Desktop 3D printers range from low-priced kit-based printers starting in the low hundred of dollars to semi-professional, prosumer, printers in the low to mid thousands. Typically, they use a spool of thermoplastic-based material which is heated and extruded through a nozzle to produce a printed part. Some resin-based platforms are also available in desktop versions, using a UV laser or a UV DLP projector for hardening its liquid material. With origins as a hobbyist platform, desktop printers often are sized to fit in an office space--hence the name. Although significant advancements have been made in the last several years, desktop printers often require significant troubleshooting and tuning during use.

Industrial, or commercial 3D printers, are designed for more reliable production in shop-floor environments. They also may hold requirements that would be difficult for a consumer to sustain such as personal protection, ventilation, compressed air access, nitrogen generation, argon, and extra equipment for post-processing. Where desktop printers are office-friendly, industrial printers often require dedicated employees and work areas. Versus desktop printers, the output of an industrial printer can be orders of magnitude higher, with larger build areas, better environmental controls, and more sophisticated additive manufacturing methods. Another key difference is the reliability of commercial additive manufacturing machines where they have significantly higher uptime to deliver parts consistently without unexpected failures. Industrial 3D printers can range from tens of thousands of dollars to the high hundreds of thousands depending on the type of platform.

Slide 1 of 1
  • Desktop 3D printers

Desktop 3D printers are low cost, but often do not have the same yield as professional platforms

3D Printing Versus CNC Machining

3D printing differs from CNC machining because it fuses a smaller stock, such as a filament, powder, or resin, together to form a shape based on the interpretation of 3D data. CNC machining uses larger material stock, and cutting tools such as end mills and drills to reduce the materials to the final shape. 3D printing is typically a non-stop process from beginning to end, meaning that once the operator presses GO they would expect not to intervene until the printing process is complete. CNC machining can be paused and tuned during the milling process by an operator.

CNC workflows require discrete operations, or “ops,” where a machining cycle is run to remove material that the tools can access, then often the part is moved to a different orientation and another op is conducted. Each setup for an op can add cost to a part, and with more complex parts at small volumes the price can get relatively expensive. With 3D printing, the entire part can be made at once with minimal post processing and no need for custom fixturing--being more cost effective for low volumes.

The freedom of complexity with 3D printing can be seen as a paradox against the expense it adds to CNC machining. In reverse, bulky items can be relatively cheap to machine compared to 3D printing, particularly with metals, due to the increased work a 3D printer must do to fuse the material together. Just like CNC machining requires design rules, 3D printing is not a cheat code for design either, it just has different strengths which can be powerful for lightweight, application-based, manufacturing.

CNC Machined Part
Read more about CNC Machining Services

3D Printing Versus Injection Molding

3d printing vs. injection molding is a choice many engineers consider. Injection molding typically requires a CNC machined mold core and cavity to run in an injection mold press. The machined plates are pressed together and a molten plastic is injected into the sealed cavity to cool into the shape of the part. Once cooled, the two halves of the mold open, and the part is ejected leaving the tool ready for the process to repeat. The major expense in injection molding is the upfront tooling required. Not only does it require a significant financial investment, but it also often takes weeks to months to have the tool produced for a production run.

Read more about Xometry's injection molding services.

Because 3D printing can make parts directly from a digital file without tooling, it is a viable way to build production volumes of parts in quantities without significant investment. 3D printing often has a break-even between 250 and 2,000 parts before injection molding becomes a more viable option. With more lean inventory methods like just-in-time (JIT), 3D printing can be a replacement to molded components with limited on-hand needs.

3D printing can be used to build molds, or mold inserts used for prototype and bridge tooling. Although typically not as robust, a 3D printed mold can often withstand enough cycles to validate a molded project in its final material. 3D printing injection molds still requires the molding platform and often is best utilized by the molding business as a form of rapid validation or bridge tooling.

3D printing processes like stereolithography (SLA) have commonly been used for fit check validations before moving to more costly tooling. This is to mitigate risk of moving to a final production tool, requiring thousands to tens of thousands of dollars investment, and finding the revision needs to change after tooling is produced. Beyond a substitute for low volume production, 3D printing is also a crucial step to ensure the molded project will be successful.

3D printed parts will have a different surface finish and material properties compared to the more established injection mold process. Substitutes and trade-offs are required for most projects that require a cosmetic smooth finish or specific material grade. Novel 3D printing processes like Carbon DLS are bridging the gap between mold-like surface finishes and end-use properties, but the choices available for injection molding are substantially more robust.

Injection Molded Part
3D Printing vs Injection Molding Breakeven

How to Get Started with 3D Printing

Slide 1 of 1
  • 3D Printed Parts

Preferred File Types

Most 3D printing services, like Xometry, accept major file formats. This includes:

  • STEP (.step, .stp)
  • Solidworks (sldprt)
  • Mesh (.stl)
  • Parasolid (.x_t, .x_b)
  • Autodesk Inventor (.ipt)
  • Dassault Systems (.3dxml, .catpart)
  • PTC Creo, Siemens (.prt)
  • ACIS (.sat)

STEP is a preferred CAD file format. Parasolid formats like STEP are universally accepted by most CAD and CAM platforms. Parasolids inherently hold unit information and other properties which takes the guesswork about size and scale versus mesh formats like STL and OBJ. Native exports from software such as Solidworks can also be helpful for services who may look at the parametric feature tree to troubleshoot issues with the model that could affect the print.

STL and Mesh Exports

Before being transferred to a 3D printer build setup software will require a mesh file, like an STL or OBJ. STL files can be directly uploaded or will be converted from the parasolid CAD file. STL files cannot be reversed back into parametric CAD. STL files hold mesh surface data as a series of triangles, so it is important to produce the file at a resolution that fits the 3D printing process while managing file size. The table below offers best practices for most STL exports.

STL and Mesh Exports
STL Export DataBest Practice
STL Export Data

Mesh Resolution

Best Practice

0.01-0.03 mm

STL Export Data

Chord Length

Best Practice

<0.016 mm

STL Export Data


Best Practice


Slide 1 of 1
  • CAD to Mesh Detail Loss

Mesh exports lose feature detail due to the triangular tessellation of curved surfaces. This also makes reversing an STL to a Parasolid difficult or impossible without remaking the model.

STL files do not contain any units or other part information beyond external mesh geometry. Because most 3D printers interpret files in millimeters (mm), it is important that the file exported is in millimeter units. If not, the file uploaded may be interpreted at a different physical size. For example, if a 1” part was exported to STL in inches, the STL would say the length is 1. When uploaded to a 3D printer, it would register a 1 millimeter--25.4 times smaller than it should be!

Exporting an STL in SolidWorks requires toggling Deviation and Angle options. For best results, choose Custom and move each bar about 80% to the right.

Design Best Practices

Design Best Practices
Design Consideration3D Printing Best Practices
Design Consideration

Minimum Wall Thickness

3D Printing Best Practices

It is recommended that features of any design are above 0.6 mm (0.024”) on self-supporting features, like X-, T-, O-, or C-like shapes. At least 1.2 mm (0.048”) is recommended for unsupported or load bearing features like I-like shapes, pins, or tabs.

Design Consideration

Clearance Between Features

3D Printing Best Practices

To ensure part features have a usable gap, it is important to design at least a 0.5 mm (0.020”) gap.

Design Consideration

Remove Confined Hollows

3D Printing Best Practices

Most commercial 3D printing processes will have trapped material or support structure in confined hollows. Line-of-sight access to clean or drain these areas is necessary. These access areas are often called “escape holes,” because they allow for material to escape during post processing.Any cavities with a depth beyond 50.8 mm (2.000”) with only one access point, such as a boss, may require multiple escape holes for cleaning.

Design Consideration

Fillet Everything

3D Printing Best Practices

Fillets, or rounded internal and external corners, are preferred in every 3D printing process to mitigate transitions between features and reduce acute stress points. Generous filleting can increase the end-use performance of a printed part.

Design Consideration

Be Mindful of Cantilevers

3D Printing Best Practices

3D printing offers significant freedom of design. Features like cantilevers and “lollipop heads” can be delicate compared to the rest of the part. It is important to be mindful of these features while designing, especially if they are critical for function. It sometimes makes sense to make these features replaceable, or use off-the-shelf pins to produce these features on large parts where they can be crushed or damaged by the part’s weight.

Design Consideration

Design with Even Wall Thickness

3D Printing Best Practices

3D printed parts share many design tips with injection molding, including uniform wall thicknesses. A uniform wall thickness will help mitigate any thermal deviations between thick and thin transitions on a part. These can be caused by uneven cooling of the part as it is growing or curing. Adding ribs, coring, and lattice structures can build strength without increasing thickness to a part. One exception is fused deposition modeling (FDM), where infills can be modified to sparse, lattice-like, cross sections which provide similar results.

The following best practices are universal across a multitude of 3D printing and additive manufacturing platforms.

3D Printer Platform Sizes

Slide 1 of 1
  • 3D Printing Size Guide

3D Printing Build Size Chart

Each 3D printing process has its own size limitations. The chart below quickly shows what sizes each platform can print. It is important to note that for most processes, building to the maximum size can increase the risk to the part and the build due to increased time and layers required. A good rule of thumb is parts that fit on 1/6th of the build area is more viable for repeated production.

Most processes can produce parts under 9 inches. Platform size can become a restriction for larger parts.

Reducing Costs of 3D Prints

Physical characteristics, materials selected, and machine platforms each play a role in the price of a 3D printed part. Many 3D printing service bureaus offer instant pricing, but may not be transparent on what the major cost drivers are. The list below provides a survey-level explanation of 3D printing price drivers. These tips can be used for reducing the costs of 3D prints.

  1. The platform, or the 3D printer used, can often be the highest cost driver for parts. Particularly in commercial additive manufacturing, machines have an overhead rate that incorporates the cost of ownership. Because many industrial platforms can cost hundreds of thousands of dollars, the rate can be between $15/hour for an FDM platform to over $100/hour for some metal 3D printing platforms. This hourly rate can be shared between parts, which mitigates the per-unit cost and is one of the key benefits of bulk production with laser powder bed systems like SLS and HP MJF.

    With desktop 3D printers, the cost of ownership may be relatively light--in the hundreds of dollars--leaving the overhead rate in the low dollars. This is often at the expense of capacity, reliability, and repeatability in quality.
  2. The part geometry is the second largest cost driver. Volume of material used, as well as build height (Z-height) can drive cost significantly. Z-height is less intuitive to a build than volume or area per layer because of mechanical operations that can happen every layer, or every several layers, on a machine platform. For example, many processes have a print head cleaning operation that runs periodically between layer movements. Although this may only take 10-30 seconds, over a large Z-height this can become an additional 20-30% build time. Many systems also require mechanical movements, often adding 7-15 seconds per layer. Although this does not seem like too much it will aggregate significantly. If a part is 6” tall, and being ran at 0.005” layers (120 microns), then there will be over 1,200 layers in that build. If each layer change averaged 10 seconds, then over 3 hours of building would be consumed by these operations.
  3. The material chosen is the third-largest cost driver. Commodity materials like ABS, ASA, and nylon often are the least expensive options due to their price and the platforms they run on. However, premium materials like Ultem or metals can sometimes add an order of magnitude to part costing due to material price as well as more specialized handling requirements.

Understanding Support Material

Support structure is unique to 3D printing. It is generated along with the part to act as a sacrificial base for overhanging features. In many 3D printing processes, the support structure is the same material as the part body. Some processes have secondary material which is sometimes soluble, or easier to remove from the part after printing.

Without support structure, an overhanging feature would not resolve or have significant cosmetic issues. Support structure also plays a valuable role as an anchor to the level build bed. Since it remains during printing, and after the print, support material can allow the 3D printed part to de-stress while maintaining its intended shape.

Slide 1 of 1
  • 3D Printed Part with Metal Support Structure

Support structure on a DMLS aluminum print

Lattice-like support structure is essential to most 3D printing processes and can be removed after a completed print.

A few powder bed plastic processes, like Selective Laser Sintering, do not require support structure. Instead, the parts are suspended in their own build material in a heated, near-melt, state to prevent deformation.

3D Printing Services Versus Ownership

Skipping ahead to the point: why not both? Additive manufacturing service bureaus offer a high variety of industrial manufacturing processes, a high amount of materials, and manage the supply chain for you--all with the touch of a button and easy-to-use interface. That being said, there are many times in product development where even waiting a few days can cause critical delays in product development. Personal desktop 3D printers can often generate a part in hours.

Personal 3D printers have become essential items for many engineering teams because they provide a “good enough” method of quickly iterating on a design, jig, fixture, or other development aid. Desktop platforms typically range from the low hundreds of dollars to the mid thousands, still much less expensive than commercial machines. Because the entry price is significantly lower, and reliability has increased with better software and hardware it often makes sense to have one or two machines on the office or shop floor. Ownership of a printer can also be a valuable training tool for engineers learning to design for additive manufacturing.

Ownership and services complement each other. Where in-house machines allow for rapid verification, they may not always offer the best materials, properties, build size, or capacity needed for projects. As a general rule, if an in-house machine will be occupied for more than 48 hours with a project, it is likely worth using a service bureau. Additionally, service bureaus have access to multiple platforms with larger build areas that can easily produce parts in days that could take a personal printer weeks to complete.

The more sophisticated the in-house printer is, the more likely staff and special work areas must be dedicated to run the machine. This can include increased labor, safety, and personal protective equipment, hazardous materials disposal, and proper ventilation. Understanding the needs of the platform, the post-processing, and the environmental requirements are important decisions on what 3D printer to own. Using 3D printing services can help users decide which process would best suit in-house requirements.

3D Printing Processes

Slide 1 of 1
  • Parts made in different 3D printing materials and processes

3D printing, or additive manufacturing, has significantly advanced and diversified in the nearly 40 years since its invention. ASTM International, the global association which builds and defines industry standards, has created specific categories for different methods of 3D part manufacturing. The list below includes some of those categories, however novel processes and hybridizations are emerging every year, challenging the global definitions.

The current additive manufacturing categories, or families, are: Material Extrusion, Material Jetting, Powder Bed Fusion, Vat Photopolymerisation, Binder Jetting, Directed Energy Deposition, and Sheet Lamination.

Material Extrusion: FDM

Material extrusion is additive manufacturing where a shaped bead of material, often melted, is extruded through a computer-controlled nozzle. This material builds on top of itself, the build platform, or support structures, to form the shape of the parts.

Fused Deposition Modeling

Slide 1 of 1

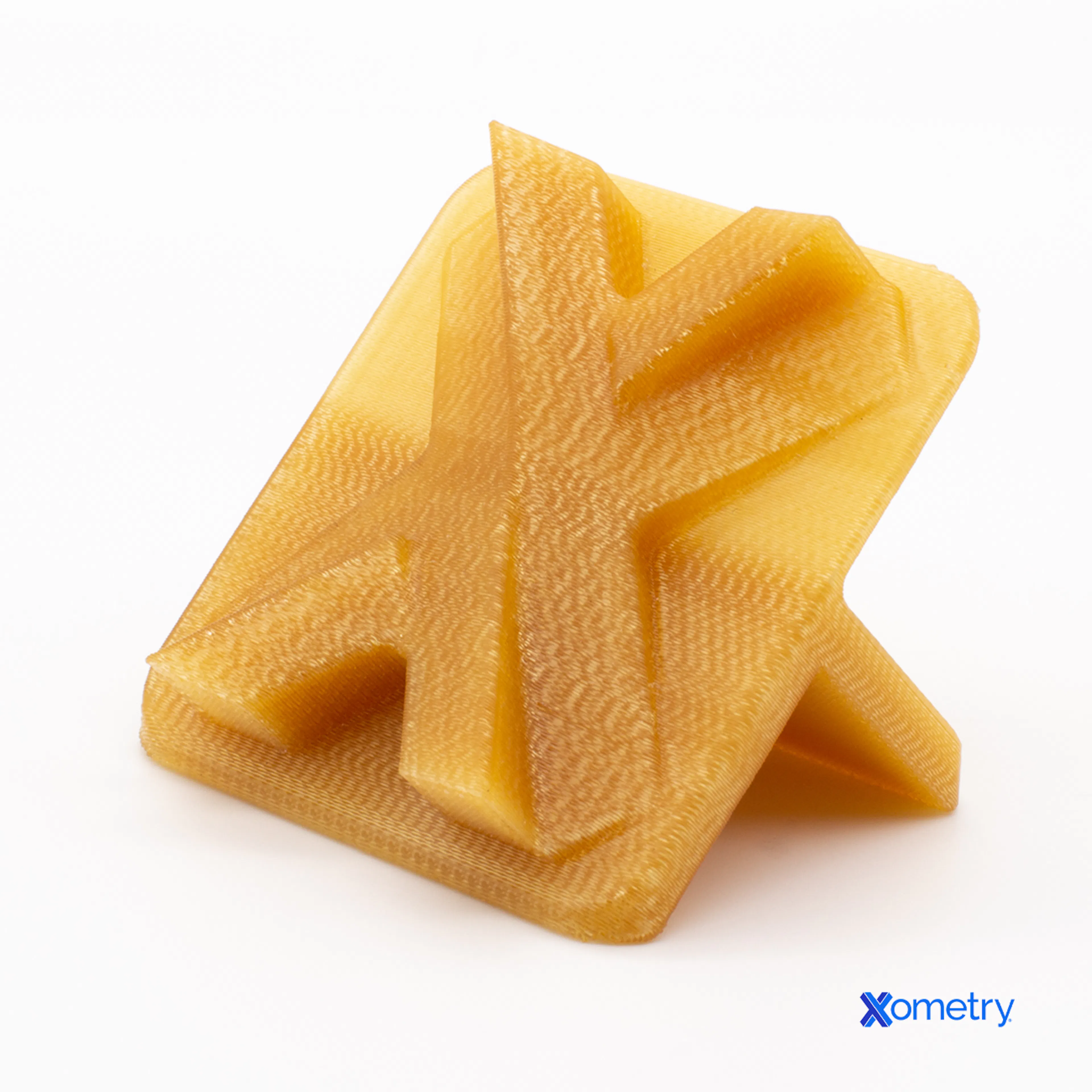

  • FDM ABS-M30 Blue and other materials

Fused Deposition Modeling, FDM, is also known as Fused Filament Fabrication, FFF, in its desktop counterparts. The FDM process uses a reel of thermoplastic-based material. The filament material is unspooled and fed into a heated extruder where it is deposited by a nozzle. For most FDM platforms, the nozzle moves in the X and Y directions while the platform moves further away in the Z direction as the part is formed.

FDM has the unique benefit of being user-friendly because it does not need a sealed build chamber or complex thermal properties. The raw material is also easy to handle and store in an open environment. Because the material instantly hardens after being deposited, the FDM process requires a support structure for overhanging features. This also allows various infills to be generated beyond a solid center to the part. Infills are used to reduce material and time used to produce parts with large internal mass. Infills look like internal grids in the part. Although infills do provide benefits to weight and price, they may reduce the part’s strength versus a solid fill.

Commercially used platforms typically have FDM machines with at least two materials and extrusion heads--one for the part and the other for the support material. Support material is often soluble in sodium hydroxide (NaOH) or caustic solutions, leaving only the completed part after a soaking cycle. Professional 3D printing services like Xometry use the Stratasys Fortus FDM line due to its high reliability, diverse material selection, and build platforms up to three feet.

Fortus FDM Materials

Fortus Standard Materials

  • ABS-M30 is A general purpose ABS which can use soluble support structure with six color options: black, blue, dark grey, ivory, red, and white.
  • ABSi is a translucent ABS material which looks diffracted when grown due to the criss-crossing of layers in the process. ABSi has three color options: translucent natural, translucent orange, and translucent red.
  • ASA, or acrylonitrile styrene acrylate boasts slightly improved performance over ABS as well as better color stability under UV exposure. ASA has ten color options: black, dark blue, dark gray, light gray, green, ivory, orange, red, and white.
  • Nylon 12 has higher impact strength and ductility than ABS, making it a better choice for ruggedized applications. FDM Nylon 12 is available in black.

Fortus Engineered Materials

  • ABS-ESD7 is an ABS formulated to be static dissipative. ABS-ESD7 is commonly used for ductwork, vents, electrical panels, and EMS fixtures. ABS-ESD7 is available in black.
  • ABS-M30i is an ABS that can be sterilized using ethylene oxide (EtO) or gamma methods for ISO 10993 USP Class VI biocompatibility. ABS-M30i is available in ivory.
  • PC, or polycarbonate, has a higher rigidity and heat deflection compared to ABS. Polycarbonate is available in a stark white.
  • PC-ABS, is a blend of polycarbonate and ABS which balances the flexibility of ABS with a higher strength and heat resistance of polycarbonate. PC-ABS is available in black.
  • PC-ISO, has similar properties as FDM PC and can be sterilized using ethylene oxide (EtO) or gamma methods for ISO 10993 USP Class VI biocompatibility. PC-ISO is available in translucent natural as well as white.
  • PPSF, or polyphenylsulfone, is a highly stiff and brittle material with a significantly high melting point at 230 Celsius. PPSF is typically used for laboratory fixtures due to its resistance to several processing chemicals. PPSF is available in a natural beige.
  • Ultem 9085, is a polyetherimide (PEI) thermoplastic that is flame retardant and offers the highest performance compared to other FDM materials. This included a high tensile strength, impact strength, and heat deflection. Ultem 9085 is available in black and natural tan.
  • Ultem 1010, is a polyetherimide (PEI) thermoplastic that is flame retardant and has even higher tensile strength and heat deflection than Ultem 9085. Ultem 1010 can be steam autoclaved for sterilization. Ultem 1010 is available in amber.
  • And more materials are becoming commercially available such as ESD PEKK and carbon filled nylon.
Fused deposition modeling FDM 3D printing services
Learn more about FDM, its materials, and check out the Fused Deposition Modeling Design Guide.

Material Jetting: PolyJet

Material jetting is a process where microdroplets of material are selectively deposited on a build platform. Looking similar to a 3-dimensional inkjet printing process, material jetting can produce high detail parts and often boasts the ability to use multiple materials, multiple colors, or both. It performs this by selectively depositing a material pixel-by-pixel.

This is not to be confused with binder jetting, where the jetted binder is used to hold together a material, layer by layer, typically on a powder bed. Material jetting is depositing the part material directly.


Slide 1 of 1
  • PolyJet Part

PolyJet, a portmanteau of “polymer jetting,” is a material jetting process that selectively deposits a UV-cured liquid resin using ink-jetting. A lamp on the printhead cures the deposited materials in a single motion, hardening the liquid, and the build tray is incrementally moved away from the print head to build height. PolyJet requires a support structure that deposits in the same method, looking like a gel. PolyJet support structure is usually removed manually to preserve fine details and then finished with a water jet or soluble bath as a finishing step. Because support structure is another material being jetted, there are often indistinct differences on the outside surface of the part which has a tacky feel unless thoroughly treated or scrubbed with an abrasive, like a Scotch-Brite pad.

Polyjet materials include: VeroWhitePlus RGD835, VeroBlackPlus RGD875, VeroGray RGD850, VeroYellow RGD836, VeroCyan RGD84, VeroMagenta RGD85, VeroBlue RGD84, Green - RGD5160-DM, Ivory - RGD5160-DM, High Temp RGD525, VeroClear RGD810, RGD720, DurusWhite RGD430, Endur RGD450, TangoPlus FLX930, TangoBlackPlus FLX980, TangoBlack FLX973, TangoGray FLX 950

Digital Materials

A unique trait of material jetting is the ability to take individual materials and deposit them in a microscopic digital matrix to modify the overall part properties. For example, PolyJet’s Vero line is rigid, plastic-like, photopolymers and its Tango line is rubber-like materials. Tago materials inherently have a low Shore A durometer, but a digital material incorporating some Vero rigid materials in the matrix can simulate higher Shore A values, and even lower Shore D values without adjusting the feed materials in the printer.

Digital materials can also be used to combine pigmented resins together to print colors, images, and textures in three dimensions on a part. Combined with the ability to print with varying rigidity and durometer, material jetting platforms are powerful engineering prototype platforms for engineering and marketing evaluations.

Digital combinations in PolyJet are predefined by software (prefixed DM-) and typically exhibit mechanical properties between rigid and flexible materials.

Multi-Material and Simulated Overmolding

Digital materials can be selectively applied to digital bodies of the 3D model. This can be used to simulate overmolded parts, often where a rubber feature is on a rigid substrate, such as a handgrip without requiring separate prints. In some manufacturing technologies, this can also be used to build supporting or sacrificial structures--such as XJet’s technology which can print metal and ceramics through material jetting.

Polyjet 3D printing services
Polyjet Resin 3D Printing through material jetting and process-specific design tips

Powder Bed Fusion: SLS, HP MJF, DMLS

Powder Bed Fusion

Powder Bed Fusion, or PBF, is an additive manufacturing process where plastic or metal parts are formed by selectively melting model features in the powdered raw material. Typically, this process is done layer by layer fusing parts with a heat source such as a laser. Because PBF creates fully dense parts in real metals and thermoplastics, it is widely used for end-use production components.

Additionally, plastic PBF has the benefit of not requiring a sacrificial support structure. This means that parts can be bulk nested in a build using all available build volume. Printed thermoplastic parts using PBS processes are suspended in loose, unfused, powder which is typically removed by bead blast during post-processing. Because of these benefits, PBF plastic processes like Selective Laser Sintering and HP Multi Jet Fusion tend to be the most economical methods of quickly producing end-use 3D printed plastic parts.

Complexity, Lattices, and Digital Foams

A common theme for many PBF manufacturing technologies is their ability to accurately produce complex organic features. These features are often so complex that they require sophisticated 3D computer generation software, such as that used in topology optimization or lattice generation. Lattices, in particular, are a strong suit of the PBF process because the process is typically more forgiving when resolving fine features and the materials themselves are more robust. Lattice structures can produce strong structure features without unnecessary weight; a powerful application for aerospace and medical applications.

In some thermoplastic PBF platforms, such as Selective Laser Sintering, the use of lattices combined with the ductile materials can create “digital foams.” These digital foams can be tuned to absorb impact and distribute energy with a 3D printable, open-cell design. Digital foams can substitute for traditional uses of foam in padding, insoles, sportswear, and other lifestyle industries. Because of the open structure of a lattice, digital foams offer better ventilation and heat distribution versus closed-cell poured, cast, or molded foams.

Selective Laser Sintering

Slide 1 of 1

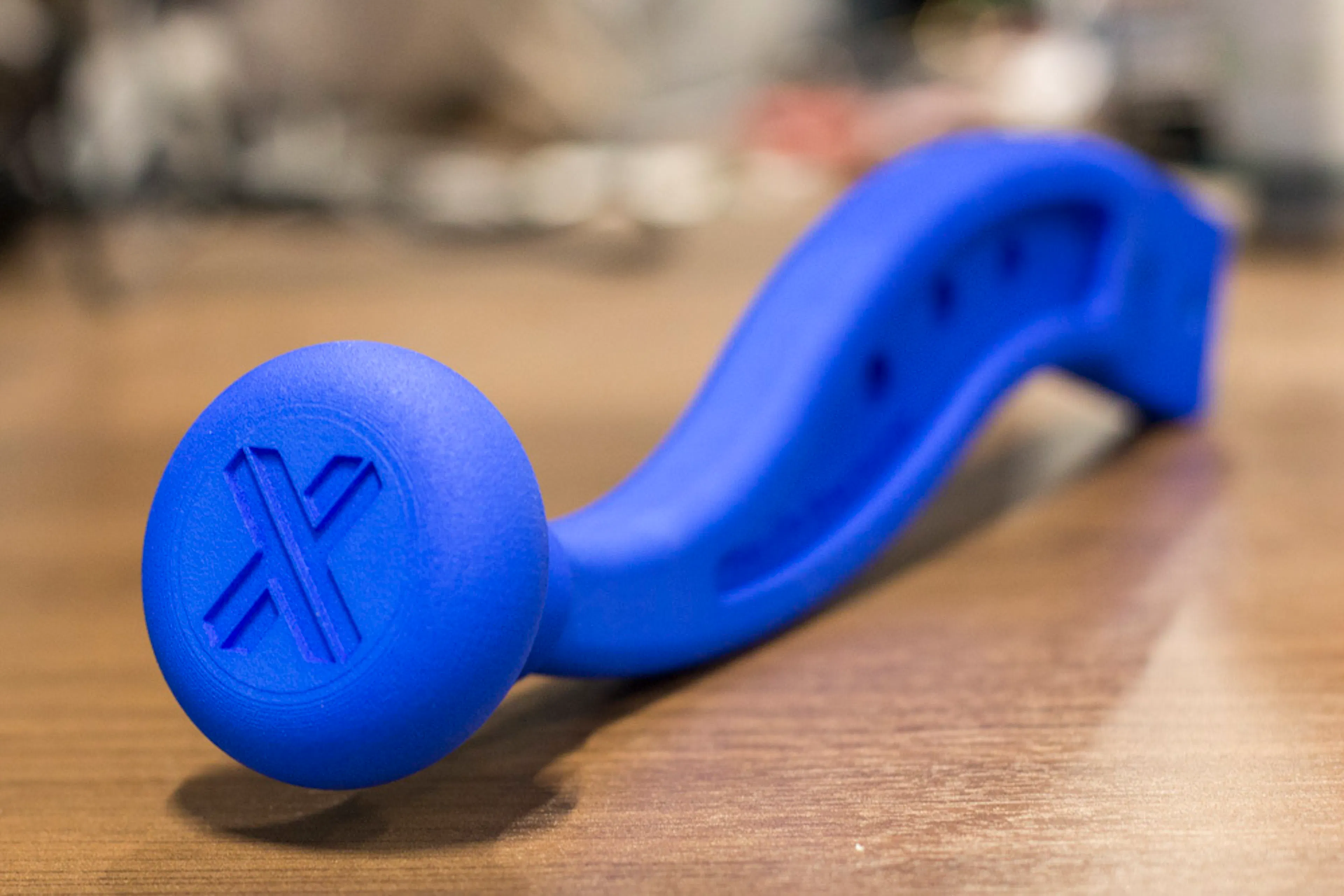

  • 3D printed parts

Selective Laser Sintering, widely known as SLS, is a laser powder bed fusion process (LPBF) where a fine layer of nylon powder is spread across a heated chamber and a laser will fuse cross-sections of the part. Once a full layer of cross-sections are fused, both in the XY and Z direction, fusing that layer to the part features already created, the build area moves incrementally down and a new layer is deposited for the process to repeat. The major players in industrial SLS 3D printing equipment are EOS (Electro Optical Systems) and 3D Systems. industrial competition is emerging, such as Farsoon, with the expiration of key patents as well as equipment from FormLabs and others with lower-cost alternatives.

SLS is a powerful way of making plastic parts in bulk due to no support structure requirements. The fusion process, known as sintering, creates solid parts with a matte, sugar-cube-like surface finish. Typically SLS parts are made in nylon--most notably nylon 12 (polyamide 12, PA12) due to a very narrow melt temperature window and high viscosity, leading to better control and feature resolution on the parts. The SLS process can also produce parts in nylon 11 (polyamide 11, PA11), TPU, PS, PP, PEKK, PEEK, and others. Variants of nylon 12 and nylon 11 are by far the most commercially available.

Some SLS materials have been enhanced and modified with different filler options such as glass bead, mineral, carbon, and flame retardant additives. It is important to note that additives like carbon fiber are not long strand due to the powder state of the raw material, however they can help make parts lighter and stiffer at the cost of part ductility.

3d Printing
Selective Laser Sintering 3D printing, design tips, and use cases
EOS, 3D Systems, and other SLS Materials
Material ClassDescriptionEOS SLS MaterialsALM SLS Materials3D Systems SLS Materials
Material Class

Unfilled Nylon 12


General purpose, ductile material. Typically white.

EOS SLS Materials

PA 2200, PA 220, PA 2202 (black), PA 2105 (beige), PrimePart PLUS PA 2221

ALM SLS Materials

PA 250, PA 650

3D Systems SLS Materials


Material Class

Glass Filled Nylon


General purpose, rigid material. Typically light beige.

EOS SLS Materials

PA 3200 GF PA12

ALM SLS Materials

PA 840-GSL PA 11 (black), PA 640-GSL PA12 (dark gray), PA 616-GS PA12, PA 615-GS PA12, PA 614-GS PA12, PA 415-GS PA12

3D Systems SLS Materials

ProX GF PA12, ProX HST

Material Class

Carbon Filled Nylon


Light, highly stiff, performance material. Typically very dark gray or black.

EOS SLS Materials

CarbonMide PA12

ALM SLS Materials

HP 11-30 PA11, PA 603-CF PA12, PA 802-CF PA12

3D Systems SLS Materials

Material Class

Aluminum Filled Nylon


General purpose, rigid material. Typically light gray.

EOS SLS Materials

Alumide PA12

ALM SLS Materials

PA 605-A PA12

3D Systems SLS Materials

DuraForm ProX AF PA12

Material Class

Unfilled Nylon 11


Highly ductile plastic. Typically white.

EOS SLS Materials

PA 1101, PA 1102 (black)

ALM SLS Materials

PA 850 Black, PA 860, PA D80-ST

3D Systems SLS Materials

ProX EX Black, DuraForm EX Natural

Material Class

Flame Retardant Nylon


UL 94 HB and V-0 passed. Typically white.

EOS SLS Materials

PA 2210 FR PA12, PA 2241 FR PA12

ALM SLS Materials

FR 106 PA11, PA 606-FR PA12

3D Systems SLS Materials

ProX FR1200 PA12

Material Class

Polypropylene (PP)


Chemical and moisture resistant. Typically natural.

EOS SLS Materials

PP 1101

ALM SLS Materials

3D Systems SLS Materials

Material Class

Polystyrene (PS)


Delicate, low-ash, material for casting

EOS SLS Materials

PrimeCast 101

ALM SLS Materials

3D Systems SLS Materials

CastForm PS

Material Class



High performance, moisture resistant, heat resistant. Typically beige.

EOS SLS Materials


ALM SLS Materials

HT-23 CF PEKK (dark gray)

3D Systems SLS Materials

EOS and 3D Systems are the primary providers of SLS materials and OEM equipment. EOS also owns Advanced Laser Materials (ALM), which offers other compounded SLS alternatives. Some of their materials are listed below.

HP Multi Jet Fusion

Slide 1 of 1
  • HP MJF 3D printed parts

HP Multi Jet Fusion (MJF) is a 3D printing powder bed fusion process developed by Hewlett Packard. Like Selective Laser Sintering (SLS), this process starts with a heated powder bed of thermoplastic material. However, HP MJF does not use a laser to fuse parts like SLS. The MJF platform uses an ink-jetted fusing agent which will specifically deposit on the part cross-sections for that build layer. A second material, called a detailing agent, is also deposited around the edge of the fusing agent to create a defined edge for the part slice. This is done quickly in one motion and is followed by a heat bar that travels across the entire build area. The heat emitted is not enough to melt the untouched material, but does cause a melt where the fusing agent is present creating a solid part feature as well as fusing to the part layer underneath. Once the heat bar passes, the build area is lowered slightly and a layer of fresh powder is smoothly deposited for the process to repeat.

Like SLS, HP MJF can build parts without support structures as they are suspended in unfused powder during the build. The parts are later separated from the powder during post-processing and bead blasted to remove excess material. A specific advantage HP MJF has over SLS is the time it takes to fuse each layer. SLS uses a laser, that will rapidly fuse the layer by zig-zagging motions across the powder bed. The laser will take more time per layer for larger cross-sections, which will vary each build layer. For the HP MJF system, the fusion per layer is much more consistent due to the ink-jetting depositing fusing and detailing agent simultaneously as it travels quickly across the build area. This is followed by an equally quick movement of the heat bar, leaving an unchanging time between layers for fusion. HP MJF has a higher throughput of builds overall versus SLS platforms which makes it a strong alternative to SLS. The material is also more recyclable due to a decreased time of exposure to heat per layer which can degrade build properties. At the moment, SLS still has an advantage on build size and material selection.

Because the process is similar to SLS, many of the material options are nylon (polyamide, PA) based. Part properties overall are similar to SLS with slightly higher fatigue resistance. Due to the fusing and detailing agent, HP MJF parts will look matte grey on the exterior and be jet black on the interior. Below are some of the common materials available for HP MJF.

HP Multi Jet Fusion 3D Printing Materials Include:

  • HP 3D High Reusability PA 12 builds parts in general-purpose Nylon 12. This is the most widely available material for the process. PA 12 is a good blend of stiffness and flexibility that is useful for housings, fixtures, and ductwork.
  • HP 3D High Reusability PA 12 Glass Beads is another common material offering 30% glass fill for increased stiffness compared to PA 12. The material is more dimensionally stable and less prone to warp and deflection.
  • HP 3D High Reusability PA 11 is a nylon 11 that is more ductile than nylon 12. PA 11 is useful for snaps, clips, and features that may require higher impact resistance.
  • BASF Ultrasint TPU01 is a thermoplastic urethane material with rubber-like flexibility. TPU is useful for wearables, digital foams, insoles, and other features requiring a tough, rubber-like material.
  • And more materials are becoming commercially available.

Discover design tips, material information, and case studies on HP Multi Jet Fusion 3D printing

HP Color 3D Printing

HP has developed specific fusing and detail agents that can give parts colors using the Multi Jet Fusion process. This process has the potential to add color, logos, marking, and other features directly to the print without post-processing. The color and details must be embedded in a compatible file such as a color STL, VMRL, AMF, or 3MF format.

HP Multi Jet Fusion 3D printing services
HP MJF 3D printing, design tips, and use cases

Direct Metal Laser Sintering

Direct Metal Laser Sintering (DMLS), is a metal additive manufacturing process where powdered material is fused by a laser on a layer-by-layer basis creating a dense metal object. Other names for DMLS are Direct Metal Laser Melting (DMLM), LaserCusing, and Selective Laser Melting (SLM). Like other powder bed fusion (PBF) processes, DMLS will selectively melt and fuse a cross-section of the 3D printed part each layer, with enough energy that the melted material also fuses with the layer(s) underneath. Unlike the plastic PBF technologies, such as selective laser sintering, DMLS requires the first layer to be fused with the build plate as well as sacrificial support structures to be generated due to intense stresses created when melting and cooling metal. This means that 3D printed metal parts in DMLS can be nested beside each other, but not above each other like plastic powder bed technologies


Metal 3D printed parts via DMLS will have a matted grain finish, similar to cast parts. This is due to the base material being a powder and how the laser fuses the features when building the part. Supported faces will often show small dimples or a grid-like pattern where sacrificial structures were removed. Metal 3D printing platforms include those from industrial OEMs like EOS, SLM Solutions, and Concept Laser.

Direct metal 3D printing materials consist of:

  • Iron-based alloys such as 316L stainless steel, 17-4PH stainless steel, and maraging steel used for industrial, automotive, and medical applications.
  • Aluminum alloy like AlSi10Mg is very popular for stiff, lightweight, 3D prints and a direct substitute to cast aluminum components.
  • Titanium-based alloys like Ti6Al4V Grade 5 titanium and ELI titanium used in aerospace and medical applications.
  • Cobalt-based alloys like cobalt chrome molybdenum (CoCrMo) are used for medical devices.
  • Copper-based alloys such as CuCr1Zr alloy offers design freedom for thermal management devices and electrical connectors.
  • Nickel-based alloys are widely used in aerospace due to their performance under high heat. Inconel 718 and Inconel 625 are two common nickel alloys used in DMLS.
  • And more materials are becoming commercially available.
Slide 1 of 1
  • DMLS aluminum sample part
Direct Metal Laser Sintering DMLS 3D printing services
Learn more about metal 3D printing, design tips, and case studies

Vat Photopolymerisation: SLA, Carbon DLS

Slide 1 of 1
  • Over a dozen unique photopolymers are available in the SLA process

Over a dozen unique photopolymers are available in the SLA process

Vat Photopolymerisation is one of the longest established additive manufacturing processes in the industry. The process consists of a material chamber with a liquid material that is selectively cured using ultraviolet (UV) light. Typically this is a UV laser or a UV DLP projector. The build plate moves away from the curing surface and resin is either introduced by a recoater blade or the resin may naturally flow into place for the next layer. Due to the specific nature of curing, the materials used in vat photopolymerization are thermoset photopolymers. These materials have been specifically engineered to act “like” different common thermoplastics like ABS, polypropylene, or polycarbonate. After the initial print, most 3D printed photopolymers require a secondary ultraviolet cure in a specialized chamber. Some materials can also require post thermal cure to activate latent properties in the materials for increased performance.

Vat Photopolymerization processes, like Stereolithography (SLA), are known for achieving incredibly high detail in the prints as well as smoother surfaces versus other processes like Selective Laser Sintering (SLS) or Fused Deposition Modeling (FDM). Like FDM and DMLS, this process requires the use of sacrificial support structures to produce overhanging features. This requires the first layer of parts printed to be fused to the build plate.

Build Approaches in Vat Photopolymerization

Although a similar result, there are two main ways of growing 3D printed parts using vat photopolymerization. The first is with the build plate starting at the top of the resin bath and moving downwards, submerging into the resin as the part is being cured on each respective top layer. In this method, the liquid resin is spread with a recoater blade to create a smooth surface before UV beam exposure. The UV laser or DLP projection is above the resin, beaming down onto the surface. Each layer cycle hardens the resin on the layer beneath. This is often found on older platforms as well as large-format machines.

Another approach is for the build tray to begin submerged in the resin vat and then progressively move up and above the resin as layers are cured. In this case, the part is built upside-down. In order to get a UV-cure, the resin basin must have a transparent bottom allowing a laser or projection to pass through. One benefit of this method is that less resin is required for a print, only needing enough to fully cover the bottom of the basin for an even cure. This method also does not require a recoater and often relies on natural liquid flow to fill gaps created as the build tray moves upwards. Some of these systems have incorporated a rocking mechanism to promote material flow as well as help release any hardened build material sticking to the transparent bottom of the resin basin. Parts built in this method may also benefit from more reclaimed material dripping from the part back into the build area. These types of platforms are often smaller in size, however, larger platforms are emerging using this method.


Stereolithography, most commonly referred to as SLA, is a common 3D printing process using vat photopolymerization to create objects. SLA parts are formed by ultraviolet (UV) light selectively curing cross-section profiles, layer-by-layer, from the bottom to the top. The UV light is typically from a UV laser, but can also be generated from a digital light projector (DLP). DLP methods benefit from being able to cure an entire cross-section instantly, allowing for quicker times between layers.

SLA materials are typically engineered to act like traditional thermoplastics but are thermoset polymers. After printing, SLA materials go through a UV cure in a specialized light chamber to ensure all material is fully hardened. Sacrificial support structures are used in the SLA process to enable overhanging features. These supports are manually removed and residual features can be easily sanded.

Because SLA parts are built from a resin, their natural print surface is smoother than other 3D printing methods. SLA 3D prints benefit from easy post-processing such as vapor blasting, sanding, polishing, or painting. This makes SLA materials ideal for cosmetic prototypes, model making, as well as fit check engineering models. Clear resins, such as Accura ClearVue, can be further post-processed for near-optical clearly using manual polishing and glossy clear-coats.

Stereolithography SLA 3D printing services
Learn more about SLA 3D printing, design tips, and case studies

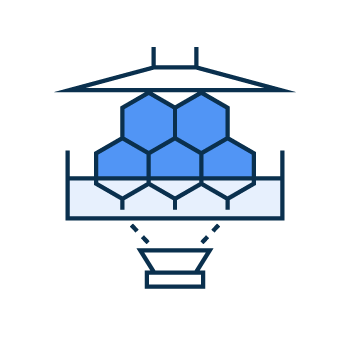

Digital Light Synthesis

Carbon, Inc., has developed a process called Digital Light Synthesis™ or DLS™ for short. This process grows parts similar to DLP-based SLA methods, where the build tray begins submerged in a resin bath, and a DLP UV cross-section is projected through a transparent bottom of the resin basin. As the material is cured, the build plate lifts out of the basin with the parts.

Carbon DLS™ offers unique innovations for both the printing process and the materials used. The DLS™ process prints continuously, with the projector showing a video of part slide data corresponding with the Z movement of the build plate. This is enabled due to a unique oxygen-permeable window on the bottom of the resin basin where the light shines through. This creates a very thin layer of material between the window and part which remains uncured even when exposed to UV light. The uncured liquid area readily flows between the cured materials above, and the window below during printing allowing continuous movement without a layer stop or any additional print release motions.

The second unique value proposition for Carbon DLS™ is the engineered materials used in the process. The continuous printing allows for feature sets to print isotropic, without a difference in mechanical ability dependent on build direction. For example, fused deposition modeling (FDM) is highly anisotropic, where the features built in the vertical direction are weaker than those built planar to the build plate. Most DLS™ materials require a UV secondary cure, similar to stereolithography (SLA), after printing and cleaning. Additionally, DLS™ materials can require a post-thermal cure through a controlled oven process to activate unique material chemistries enhancing the part’s physical properties.

Because of the end-use nature of the materials, isotropic properties, and relatively smooth surface of the vat photopolymerization prints, DLS™ is best suited for low and mid-volume production versus one-off prototypes. The current printer platforms, the M1 and M2, have a smaller build area and are ideal for small workpieces that can be arrayed on the build tray. The Carbon L1, a significantly larger platform, and future Carbon printers will enable larger parts that are production viable.

Xometry Image
Learn more about Carbon DLS 3D printing, design tips, and case studies

Other 3D Printing Processes

Novel 3D printing processes and innovations of existing processes occur frequently as additive manufacturing expands into the established manufacturing marketplace. The 3D printing processes discussed previously are the most regularly used, particularly the powder bed fusion, vat photopolymerization, and material extrusion processes. The listed process groups below have their own viability and maturity in additive manufacturing.

Binder Jetting

Binder Jetting is a 3D printing technology that utilized ink-jetting to bond powder-based materials together on a layer-by-layer basis. Parts made with this method typically require additional processing after the shape is printed. The ink-jetted binder will hold the part geometry together in a fragile “green” state. With non-metal processes, the green part may be infiltrated, or dipped, in a liquid agent that will cause the material to harden. For example, some ceramic-based binder jetting processes require a CA+ dip (superglue) to give the structure rigidity. A benefit of binder jetted polymers and ceramics is that the ink-jetting can introduce full color into the prints.

Binder jetting is also used for metal 3D printing. Unlike direct metal laser sintering (DMLS) which makes a solid part during the print, metal binder jetting requires the green part to typically go through a debinding process (making a “brown” part) and then a post-furnace sinter. One benefit of metal binder jetting over DMLS is its ability to make more complex geometries without support structures, creating cheaper parts at scale. A disadvantage of metal binder jetting is that the furnace step typically gives unpredictable shrinkage across feature sets. Most production binder jet projects require several iterations to tune a 3D file for printing repeatedly with predictable success.

Directed Energy Deposition

Directed Energy Deposition, or DED, is a process that blows metal material in an inert gas onto a build substrate. The material is fused to the substrate via an energy source such as a laser, creating a build-up of mass. DED creates near-net-shapes, where the detail level is low or coarse. The deposited material is typically intended for post machine processing.

DED is unique in that it can be in a dedicated platform, or installed as a modular addition to existing machining centers. It also does not require a traditional build plate, can be welded to any compatible substrate, even other fabricated parts. This makes DED powerful for repairs, where it is able to add material to chipped or cracked features such as impellers for specific post-machining. A consideration with directed energy deposition technologies is that the design must be self-supporting because the process inherently cannot create smaller detailed support structures. This is why many DED features are conical or cylindrical.

Electron Beam Melting

Electron Beam Melting (EBM) is a powder bed fusion technology that builds metal parts on a layer-by-layer basis using controlled electron beams to create melt pools. This process differed from direct metal laser sintering (DMLS) both by its energy source, being an e-beam versus a laser, and its build conditions, being a heated chamber versus room temperature. EBM machines, like those made by Arcam AB, can heat up to 900 Celsius and above, allowing for a few advantages during printing. The most notable advantage of EBM over DMLS is that parts do not require traditional support structure or bonding to a build plate. EBM parts may have a sacrificial structure to facilitate thermal dissipation.

Electron beam melting is most widely used in the medical implantable industry. Metals like Titanium ELI are common in spine implant, femoral implants, and hip implants. Typically EBM features are post-machined, but features like lattices may be retained on the final part for mechanical or structural purposes.

Slide 1 of 1
  • 3D printed Xometry "X's"

Media Blasting 3D Printed Parts

Media blasting is typically used for powder bed fusion materials in plastics and metals. For example, all selective laser sintered components are media blasted to remove excess unsintered powder stuck to the workpiece. Media blasting typically takes place in a cabinet with glove-access to an air nozzle. Pressurized air is mixed with an abrasive media, such as sand-like glass beads, and directed on the part. Different media can produce different results. Glass beads can produce a matte surface as well clean and prepare the surface for paint. Ceramic media can create micro dimples, surface treating parts for a smoother touch. Small metal spheres can be used to shot-peen a metal 3D print, helping remove unsintered material and increase the mechanical properties of fine detailed features by smoothing the surface. Currently there is no media blasting method that will fully take a 3D printed part to a polish without manual intervention like sanding.

Sanding and Media Tumbling 3D Prints

Slide 1 of 1
  • polyjet mult-material

In many cases, the goal of post-processing is to smooth or polish parts or features of parts. Using sandpaper and abrasive media tumbling is a typical method for reducing surface roughness. Sandpaper comes in multiple options of coarseness, called “grit,” where the lower the grit, the more coarse, leaving finer grits to make smoother and smoother features. Typical sanding to a near-polish may start with ~300 grit paper to wet-sand (sanding under running water) away layer lines on the 3D print. From there, an operator will progressively move to finer grits like 600, 800, 1200, and ultimately to 2000+ grit. It is important to note that sanding is a manual process, and the costs associated are labor which can become expensive compared to the price of a 3D print.

Media tumbling is another abrasive option for smoothing 3D printed parts using an automated method. Media tumbling devices vibrating vats of plastic, ceramic, or metal media with different sizes and geometries depending on their purpose. 3D printed parts that are media tumbled typically come out with a smooth or satin appearance on all accessible features the media can touch. A downside of media tumbling is that it can damage thin-walled or fine features as well as slightly discolor parts depending on media conditions. Like sanding, media tumbling a part to polish typically requires multiple progressive steps and operations.

Dyeing 3D Printed Plastics

Slide 1 of 1
  • red nylon

Powder bed fusion processes like selective laser sintering (SLS) 3D print parts in white or natural nylon. Dyeing the white parts to another color is an economical method to provide cosmetic differentiation in bulk. Dyeing involves using an acid dye to pigment the material in a heated water bath. Because many parts can be submerged at once, dyeing is an inexpensive post processing option.

White nylon parts can be dyed in various colors, including green, red and blue; however, the most popular option is black due to its versatility in different applications. Dyeing parts can help create differentiation or add color to otherwise plain components. Due to variables within the process, dyed parts can vary from batch to batch or even from part to part. Due to the processes variability, we do not recommend using dying to achieve a cosmetic finish where consistency and repeatability are essential. Dyed nylon parts will not pigment full-through, since they are solid in the interior, and will show their natural material color if deeply scratched or cut.

Post-Machining 3D Printed Parts

Slide 1 of 1
  • dmls aluminum

Post-machining is most common on 3D printed metal parts, where certain surfaces or tolerances are required. This process involves using a manual or CNC milling center to remove material with drills, end mills, and other cutting tools.

Post-machined parts benefit from improved mechanical properties due to a continuously smooth surface with reduced microstress points. However, post-machining is often expensive requiring custom setups and test runs.

Vapor Smoothing 3D Printed Plastics

Slide 1 of 1
  • HP MJF Vapor Smooth 3D Printing

Vapor smoothing is a touch-free process taking advantage of incompatibilities with materials. For example, ABS plastic will dissolve with acetone as it is not chemically compatible. If controlled properly, an acetone vapor smoothing process can help liquify just the outer portion of a ABS 3D print, and then be halted to reduce harmful effects. For materials like nylons and Ultem (PEI), new processes have been developed for a controlled vapor smoothing.

Like machining, vapor smoothing can give parts overall better mechanical properties as well as improved cosmetics. Vapor smoothing can also enable watertight seals on previously porous materials. A downside of vapor smoothing is the denaturing of crisp features, which may appear rounded after the process.

Slide 1 of 1
  • 3D printed Xometry "X's" and 3D printed housing on its side

SLS and HP MJF parts can be vapor smoothed and dyed to achieve outstanding cosmetics and increased performance.

Electropolishing 3D Printed Metal

3D printed metal parts can be electropolished for decreased surface roughness and increased surface brightness. Electropolishing submerges the material in a conductive solution, allowing ions of the material to be removed from the surface, thus increasing smoothness. Electropolishing often is a final step in polishing as it only removes an extremely fine layer of material. Some processes will aggressively polish parts, removing sharp corners and fine details.

Carbon Mesh
Trends in 3D Printing


The content appearing on this webpage is for informational purposes only. Xometry makes no representation or warranty of any kind, be it expressed or implied, as to the accuracy, completeness, or validity of the information. Any performance parameters, geometric tolerances, specific design features, quality and types of materials, or processes should not be inferred to represent what will be delivered by third-party suppliers or manufacturers through Xometry’s network. Buyers seeking quotes for parts are responsible for defining the specific requirements for those parts. Please refer to our terms and conditions for more information.

Xomety X
Team Xometry
This article was written by various Xometry contributors. Xometry is a leading resource on manufacturing with CNC machining, sheet metal fabrication, 3D printing, injection molding, urethane casting, and more.
