Thin-Wall Injection Molding
Thin-wall injection molding is used to produce plastic parts with reduced weight and minimized material usage. The process involves injecting molten thermoplastic at high speed and pressure into molds designed for minimal wall thickness. Material preparation begins with heating pellets to a controlled melt temperature. The injection fills the mold cavity quickly to avoid premature cooling. Cooling follows immediately to solidify the shape and maintain dimensional accuracy. Short cycle times and efficient heat transfer make the method suitable for mass production. Typical applications include packaging containers, disposable medical items, and lightweight automotive parts. Medical trays, food lids, and battery housings are examples of products that require consistent wall distribution and structural performance under reduced material volume. Complex designs benefit from reduced cooling time and consistent mold filling in thin-wall parts. Mold design and processing conditions must be optimized for the targeted wall thickness to avoid warping, short shots, or incomplete filling. High-speed machinery and precise temperature control support the success of thin-wall injection molding in demanding industries.
What is Thin-Wall Injection Molding?
Thin-wall injection molding is a manufacturing process used to produce plastic parts with thin walls, often defined as below about 1 mm, or with a thickness-to-flow-length ratio above 150:1. The technique is commonly employed for products that require lightweight yet durable structures (containers, packaging, and medical devices). It involves injecting molten plastic into a mold cavity under high pressure, which fills the cavity quickly and evenly. The process is optimized for lightweight, high-strength applications where structural integrity and dimensional precision must be maintained despite reduced material volume. Its short cycle times and efficient material usage make it a preferred technique for producing packaging containers, medical disposables, electronic housings, and automotive interior components. Thin-wall injection molding is valued for its high production efficiency, minimal material waste, and repeatability, offering a balance of durability, cost-effectiveness, and manufacturing speed suitable for mass production in industrial settings.
How does Thin-Wall Injection Molding Work?
Thin-wall injection molding works by injecting molten plastic into a mold cavity under high pressure, ensuring the plastic fills the cavity quickly. High injection speeds, elevated melt temperatures, and optimized gating improve flow, allowing the material to reach thin areas efficiently. The pressure and flow interaction is critical, as it influences the material’s ability to fill every part of the mold. A fast injection process is essential to minimize cooling time and prevent defects. The technique is commonly used in the production of lightweight packaging, consumer electronics, and automotive parts, where precision and rapid production are key.
What are the Key Benefits of Thin-Wall Injection Molding?
The key benefits of Thin-Wall injection molding are listed below.
- Cost Efficiency: Thin-wall molding reduces material usage, leading to lower production costs. Lower material waste increases profitability for manufacturers.
- High Production Speed: The fast injection and cooling process allows for quicker turnaround times, improving production efficiency. Industries such as packaging, medical devices, and consumer electronics benefit from the process’s ability to achieve high output within tight production schedules.
- Lightweight Design: The technique produces structurally sound yet lightweight components, reducing total material volume and energy consumption. Automotive and consumer electronics industries use it to reduce the weight of parts, improving energy efficiency.
- Precision and Quality: High injection pressures and controlled cooling yield parts with tight dimensional tolerances and consistent surface finishes. The process meets the quality standards required in medical and electronics manufacturing.
- Design Flexibility: Thin-wall injection molding supports complex geometries, sharp details, and integrated functional features without compromising strength. The process enables engineers to develop innovative product designs that meet performance and aesthetic requirements simultaneously.
What are the Limitations of Thin-Wall Injection Molding?
The limitations of Thin-Wall Injection Molding are listed below.
- Geometric Limitations: Complex geometries with sharp corners, deep ribs, or variable wall sections are difficult to fill due to restricted material flow and rapid cooling. High injection speeds tend to lead to short shots or flow marks, limiting the design freedom of intricate components.
- Material Constraints: Only polymers with high melt flow rates (MFR) and low viscosity perform well under thin-wall conditions. Materials such as polypropylene (PP), polystyrene (PS), and polycarbonate (PC) are preferred, while highly filled or reinforced polymers are less suitable because of increased viscosity and poor flowability.
- Mold Complexity and Cost: Thin-wall molding requires precision-engineered molds capable of withstanding extremely high pressures (typically up to 35,000 psi). The molds demand advanced cooling systems and fine tolerances, significantly increasing tooling costs and design complexity.
- Process Stability at High Speed: Maintaining quality at high injection velocities is challenging, while thin-wall molding enables rapid cycles. Excessive shear or inadequate cooling control results in part warpage, burn marks, or dimensional variations, requiring careful optimization of injection parameters.
- Wall Thickness Uniformity: Consistent thickness is difficult to maintain across large or multi-featured parts. Uneven cooling or unbalanced flow distribution weakens structural integrity and leads to internal stresses, particularly in automotive, medical, and electronic applications where precision and durability are essential.
What Factors Affect the Performance of Thin-Wall Injection Molding?
Several factors (Material Flowability, Mold Design, and Wall Thickness) affect the performance of thin-wall injection molding. Material properties play a significant role in determining the flow and filling of the mold. Materials with high flowability ensure the plastic reaches the thin areas of the mold without delays or defects. The mold design, including the placement of cooling channels and wall thickness, influences the cooling rate and uniformity of the product. A well-designed mold promotes consistent cooling, preventing warping or uneven thickness. Injection speed and pressure are critical for optimizing the quality of the part. Higher speeds and pressures help achieve better flow, but must be controlled to avoid defects like short shots or overpacking.
What Challenges Do Manufacturers Face When Using Thin-Wall Injection Molding?
Manufacturers face several challenges (inconsistent part thickness, cooling inefficiencies, warping, and shrinkage) when using thin-wall injection molding. Maintaining consistent part thickness is difficult, as variations can lead to defects such as weak spots or warping. Achieving efficient cooling without causing part distortion is another challenge. Insufficient cooling channels or uneven cooling rates lead to cooling defects, compromising part quality. Ensuring smooth material flow in thin sections requires precise control of injection speed and pressure. Thin-walled sections are more prone to incomplete filling or uneven distribution, which affects the final product’s structural integrity.
What are the Materials Used in Thin-Wall Injection Molding?
The materials used in Thin-Wall Injection Molding are listed below.
- Polypropylene (PP): Preferred for applications like containers, medical trays, and packaging. It is known for its low density, excellent flowability, and chemical resistance, making it ideal for mass production of lightweight products.
- Polyethylene (PE): Preferred for disposable items and food packaging because of its flexibility, chemical resistance, and good moisture barrier properties.
- Acrylonitrile Butadiene Styrene (ABS): Used in consumer electronics housings and small appliance parts for its impact strength, surface finish, and dimensional stability. ABS provides a balance between strength and ease of processing, making it perfect for thin-wall molding in high-volume applications.
- Polystyrene (PS): Applied in thin-wall packaging and disposable products due to its rigidity, ease of processing, and cost-efficiency.
- Polycarbonate (PC): Chosen for protective covers and optical components requiring transparency, heat resistance, and high strength.
- Polyethylene Terephthalate (PET): Used for thin-walled bottles and trays requiring clarity, stiffness, and excellent gas barrier performance.
- Nylon (PA): Used in industrial components and precision mechanical parts for its wear resistance, toughness, and stability under load.
- High-Density Polyethylene (HDPE): Applied in rigid packaging and containers where stiffness, impact resistance, and moisture resistance are needed.
- Thermoplastic Elastomers (TPE): Used in soft-touch grips, seals, and overmolded parts that require flexibility and elasticity. TPE provides the rubber-like flexibility needed for consumer products that require a soft, tactile feel.
- Acetal (POM): Selected for gears, snap-fit components, and other precision parts requiring low friction, stiffness, and dimensional control. Acetal is highly resistant to wear and is ideal for high-performance mechanical parts.
1. Polypropylene (PP)
Description
Polypropylene (PP) is a versatile, cost-effective thermoplastic widely used in injection molding. The polymer is valued for its excellent balance of strength, flexibility, and chemical resistance. Polypropylene's resistance to fatigue and stress makes it ideal for manufacturing durable parts when using Polypropylene in injection molding processes.
Key Properties
- Density: 0.90 g/cm³
- Melt temp: 160–170°C
- Tensile strength: 37–55 MPa
- Flexural modulus: 1.2–1.5 GPa
Key Advantages
- Low material cost
- Excellent chemical resistance
- Good fatigue and stress resistance
Common Applications
- Packaging (bottles, containers)
- Automotive components (bumpers, interior panels)
- Household goods (storage bins, furniture)
- Medical supplies (syringes, specimen containers)
2. Polyethylene (PE)
Description
Polyethylene (PE) is a widely used thermoplastic known for its excellent chemical resistance, flexibility, and low-friction properties. The synthetic polymer is a cost-effective material with good impact strength, making it ideal for a wide range of applications. The polymer Polyethylene is commonly used in low and high-density forms, offering versatility in production.
Key Properties
- Density: 0.91–0.97 g/cm³
- Melt temp: 120–180°C
- Tensile strength: 20–40 MPa
- Flexural modulus: 0.5–1.0 GPa
Key Advantages
- Excellent chemical resistance
- Good impact strength (grade-dependent)
- Low moisture absorption
Common Applications
- Packaging (plastic bags, bottles)
- Automotive parts (fuel tanks, interior components)
- Household items (containers, toys)
- Medical devices (catheters, tubing)
3. Acrylonitrile Butadiene Styrene (ABS)
Description
Acrylonitrile Butadiene Styrene (ABS) is a thermoplastic widely used in injection molding due to its excellent combination of strength, flexibility, and impact resistance. The choice of material is crucial in injection molding as it directly affects the product's durability, strength, and ease of processing. The right material ensures the final product meets the required specifications for different applications, offering optimal performance while controlling costs. ABS is a preferred material in injection molding, alongside others like Acrylonitrile Butadiene Styrene (ABS), due to its balance of mechanical properties and ease of processing.
Key Properties
- Density: 1.04 g/cm³
- Melt temp: 220–250°C
- Tensile strength: 40–60 MPa
- Flexural modulus: 1.6–2.5 GPa
Key Advantages
- High impact resistance
- Good dimensional stability
- Easy to process and mold
Common Applications
- Automotive parts
- Consumer electronics casings
- Plumbing fittings
- Toys
4. Polystyrene (PS)
Description
Polystyrene is a widely used thermoplastic in injection molding. The material's characteristics make it suitable for a variety of applications, offering an excellent balance between rigidity and ease of processing. Choosing the right material for injection molding is essential to ensure the product meets strength, flexibility, and durability requirements while being cost-effective. The plastic is preferred for products that require high clarity or easy molding, making it ideal for applications requiring simple, rigid products like Polystyrene.
Key Properties
- Density: 1.04 g/cm³
- Melt temp: 230–270°C
- Tensile strength: 30–50 MPa
- Flexural modulus: 2–3 GPa
Key Advantages
- High clarity
- Easy to process and mold
- Cost-effective
Common Applications
- Food containers
- Disposable cutlery
- Packaging materials
- Toys
5. Polycarbonate (PC)
Description
Polycarbonate (PC) is a durable thermoplastic used widely in injection molding. Selecting the right material is essential to achieve specific product characteristics (strength, impact resistance, and transparency). It is known for its high strength and toughness, making it ideal for applications requiring durability and clarity. It offers a combination of excellent mechanical properties and ease of processing alongside other materials like Polycarbonate.
Key Properties
- Density: 1.20 g/cm³
- Melt temp: 230–270°C
- Tensile strength: 60–70 MPa
- Flexural modulus: 2–3 GPa
Key Advantages
- High impact resistance
- Excellent optical clarity
- Good dimensional stability
Common Applications
- Optical lenses
- Automotive parts
- Safety equipment
- Electrical enclosures
6. Polyethylene Terephthalate (PET)
Description
Polyethylene Terephthalate (PET) is a widely used thermoplastic polymer in injection molding. Material selection impacts the final product's strength, durability, and cost-effectiveness. PET is chosen for its excellent mechanical properties, high strength, and resistance to wear and tear. It is commonly used in applications requiring high durability and clarity. It is a popular choice in injection molding for applications requiring high strength, clarity, and resistance, alongside other materials like Polyethylene Terephthalate (PET).
Key Properties
- Density: 1.38 g/cm³
- Melt temp: 250–270°C
- Tensile strength: 55–75 MPa
- Flexural modulus: 2.5–3.0 GPa
Key Advantages
- High strength and durability
- Good chemical resistance; limited by hydrolysis and alkalis
- Good dimensional stability
Common Applications
- Beverage bottles
- Packaging materials
- Automotive parts
- Medical packaging and trays
7. Nylon (PA)
Description
Nylon (PA) is a versatile thermoplastic material commonly used in injection molding due to its strength, durability, and resistance to wear. Material selection is essential to achieving the desired characteristics in a product like Nylon. It offers excellent mechanical properties, high strength, and good chemical resistance, making it suitable for demanding applications.
Key Properties
- Density: 1.14 g/cm³
- Melt temp: 250–270°C
- Tensile strength: 80–120 MPa
- Flexural modulus: 3.0–3.5 GPa
Key Advantages
- High strength and durability
- Excellent wear resistance
- Good chemical resistance
Common Applications
- Automotive parts
- Electrical connectors
- Industrial gears
- Consumer goods
8. High-Density Polyethylene (HDPE)
Description
High-Density Polyethylene (HDPE) is a strong, versatile thermoplastic used in injection molding. Choosing the right material ensures the final product meets the strength, durability, and flexibility needs. HDPE offers good impact and abrasion resistance with moderate tensile strength. It is lightweight, chemical-resistant, and cost-effective, suitable for many applications. High-Density Polyethylene (HDPE) is widely used in injection molding due to its stiffness, chemical resistance, and affordability, alongside materials like High-Density Polyethylene (HDPE).
Key Properties
- Density: 0.95 g/cm³
- Melt temp: 120–180°C
- Tensile strength: 30–40 MPa
- Flexural modulus: 1.0–1.5 GPa
Key Advantages
- High strength-to-density ratio
- Excellent chemical resistance
- Cost-effective
Common Applications
- Bottles
- Piping
- Toys
- Food containers
9. Thermoplastic Elastomers (TPE)
Description
Thermoplastic Elastomers (TPE) are polymers combining rubber and plastic properties. Material choice in injection molding is crucial for characteristics (flexibility, strength, and durability). TPE offers excellent flexibility, elasticity, and chemical resistance, ideal for tough, stretchable applications. It is easy to process and delivers high performance in various applications. TPEs are commonly used in injection molding due to their flexibility, durability, and ease of processing, alongside other materials like Thermoplastic Elastomers (TPE).
Key Properties
- Density: 0.85–1.05 g/cm³
- Melt temp: 200–250°C
- Tensile strength: 15–30 MPa
- Flexural modulus: 0.5–1.0 GPa
Key Advantages
- High flexibility and elasticity
- Good chemical resistance
- Recyclable
Common Applications
- Automotive parts
- Medical devices
- Consumer electronics
- Sealants and gaskets
10. Acetal (POM)
Description
Material choice determines product strength, stability, and function in injection molding. Injection-molded parts must meet specific requirements such as wear resistance, dimensional control, and environmental stability. The use of engineering thermoplastics improves performance in load-bearing and moving parts. High mechanical strength, fatigue resistance, and machinability make it suitable for complex and precision components in Acetal (POM).
Key Properties
- Density: 1.41 g/cm³
- Melt temp: 175°C
- Tensile strength: 65 MPa
- Flexural modulus: 2800 MPa
Key Advantages
- Strong resistance to friction and wear
- Stable in high-moisture and chemical environments
- Maintains tight tolerances in demanding conditions
Common Applications
- Mechanical gears and bearings
- Automotive interior and fuel system parts
- Electrical and electronic housings
- Fluid handling equipment
How do Material Properties Affect the Cost and Performance of Thin-Wall Injection Molding?
Material properties significantly impact the cost and performance of thin-wall injection molding. The strength of the material determines the durability and functionality of the parts. Stronger materials provide more robust and long-lasting components, reducing the likelihood of product failure and extending their lifespan. Flowability plays a critical role in the cycle time and processing costs. Materials with higher melt flow rates (MFR) fill the mold faster, resulting in shorter cycle times and lower production costs. Heat resistance and thermal stability affect part performance, particularly in high-temperature environments. Materials with better heat resistance maintain their integrity at higher temperatures, ensuring consistent performance. The properties influence material costs, as high-performance materials carry a higher price tag.
What are the Applications of Thin-Wall Injection Molding?

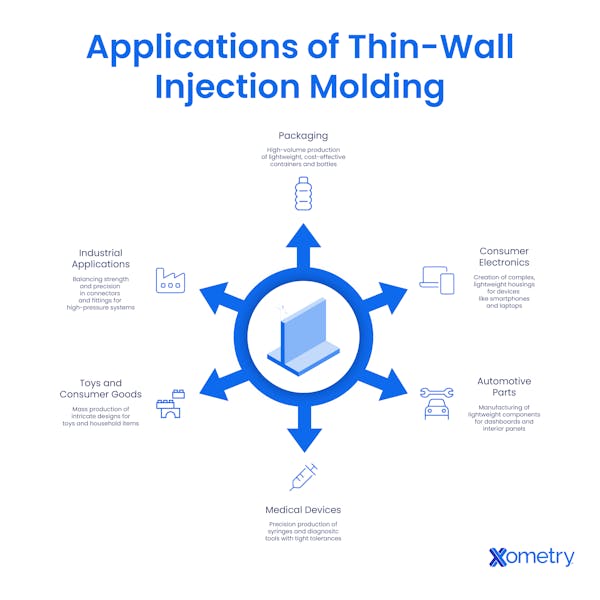

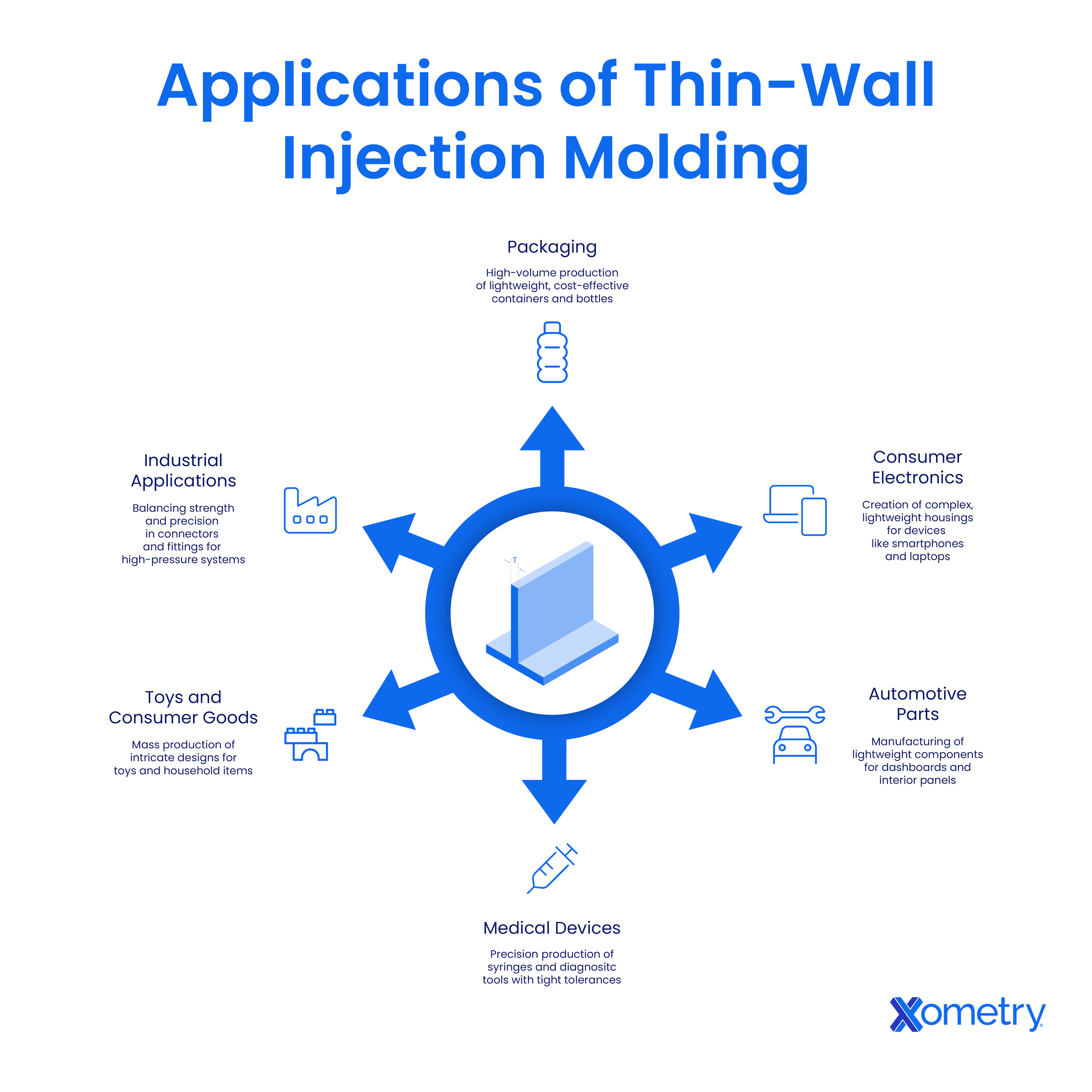

The applications of Thin-Wall injection molding are listed below.
- Packaging: Thin-wall injection molding is commonly used in packaging applications, such as plastic containers and bottles. The process allows for high-volume production of lightweight, cost-effective packaging that maintains structural integrity.
- Consumer Electronics: Thin-wall molding produces parts for consumer electronics, including housings for devices like smartphones and laptops. The ability to create complex shapes with thin walls reduces weight and material costs while maintaining performance.
- Automotive Parts: The automotive industry benefits from thin-wall injection molding in producing lightweight components (dashboards, trim, and interior panels). Parts must meet specific design and material requirements to withstand high impact and temperature variations.
- Medical Devices: Precision is important in medical device manufacturing. Thin-wall molding is used for producing components (syringes, drug delivery systems, and diagnostic tools). The need for tight tolerances and high-quality standards adds complexity to the process.
- Toys and Consumer Goods: The production of toys, household goods, and other consumer products relies on thin-wall molding. The application benefits from the ability to mass-produce intricate designs while maintaining affordability and product safety.
- Industrial Applications: Thin-wall injection molding is used in various industrial products, including connectors and fittings. The challenge lies in balancing material strength with the need for precision and thin-walled designs for high-pressure systems.
What are Examples of Thin-Wall Injection Molding Products?
The examples of Thin-Wall injection molding products are listed below.
- Automotive Panels: Thin-wall injection molding is used to produce lightweight panels for vehicles, such as dashboards and door trims. The design improvement focuses on reducing weight without compromising strength or durability, which is essential for fuel efficiency and performance.
- Electronics Housings: Consumer electronics, such as smartphones and laptops, rely on thin-wall molding for their outer housings. The process allows for complex shapes and thin sections, reducing material costs while maintaining protection for internal components.
- Appliance Parts: Household appliances like vacuum cleaners and coffee machines utilize thin-wall injection molding for parts such as body shells and internal components. The lightweight design reduces product weight, making appliances easier to handle and use.
- Medical Components: Thin-wall injection molding is used in manufacturing medical components such as syringes and diagnostic tools. The products must meet strict regulatory standards while maintaining precision and structural integrity to ensure safety and functionality.
- Packaging: Thin-wall molding is ideal for producing packaging containers, bottles, and cups. The lightweight nature of the products reduces material costs and improves sustainability without sacrificing strength or durability.
How does Thin-Wall Injection Molding differ from Other Types of Injection Molding
Thin-wall injection molding differs from other types of injection molding by focusing on the production of parts with thinner walls. Traditional injection molding produces parts with thicker walls for added strength and durability. Thin-wall molding requires faster injection speeds and shorter cooling times to prevent the material from cooling too quickly, which causes defects. Achieving thin walls without compromising strength involves optimizing the design and material choice. The thinner walls in thin-wall injection molding offer advantages (reduced material usage, leading to cost savings, and shorter cycle times), which increase production efficiency. Industries like packaging and automotive benefit from the advantages, as they require lightweight yet durable parts produced in high volumes.
How do Production Speeds in Thin-Wall Injection Molding Compare to Other Molding Methods?
Production speeds in thin-wall injection molding are faster than in traditional molding methods. The quicker injection and cooling times for thin-walled parts shorten cycle durations, enabling higher production output. Higher injection pressures and optimized cooling rates ensure consistent quality and efficiency. In contrast to conventional molding, which requires longer cooling times for thicker parts, thin-wall molding excels in high-volume industries like packaging and automotive, where speed and material efficiency are critical.
Is Thin-Wall Injection Molding More Cost-Effective Than Liquid Silicone Rubber Molding?
Yes, thin-wall injection molding is more cost-effective than Liquid Silicone Rubber (LSR) molding because thermoplastics are processed faster and have shorter cycle times than LSR. Thin-wall molding optimizes material efficiency, resulting in reduced production costs while enabling high-volume manufacturing. LSR involves higher material costs and requires specialized equipment, such as platinum-catalyzed curing systems, which increases both production time and cost. Thin-wall molding provides a better cost-to-performance ratio for industries focusing on lightweight, high-volume parts, such as packaging and automotive, while LSR offers greater flexibility and durability for applications like medical devices, seals, and gaskets. The Liquid Silicone Rubber molding excels in applications requiring higher flexibility and durability, but at a higher production cost.
Is Thin-Wall Injection Molding More Suitable for Mass Production than Foam Injection Molding?
Yes, thin-wall injection molding is more suitable for mass production than foam injection molding. Thin-wall injection molding is generally more suitable for mass production than foam injection molding due to its faster cycle times, better material efficiency, and ability to maintain part strength and integrity. The process is highly optimized for producing lightweight components in large volumes, making it ideal for industries such as packaging, automotive, and consumer goods. Foam injection molding, while effective for parts requiring internal voids or insulation, is more complex, as it introduces physical or chemical blowing agents to form internal cellular structures within the part. The process leads to longer cycle times, increased potential for defects, and lower production efficiency, making it less ideal for large-scale manufacturing. Thin-wall molding provides a better cost-to-performance ratio, especially in industries focused on cost reduction and energy efficiency, while foam injection molding is suited for specialized applications. Foam Injection Molding is better suited for parts requiring internal voids or insulation, but faces challenges in large-scale production efficiency.
To learn more, see our full guide on Foam Injection Molding.
Is Thin-Wall Injection Molding More Energy-Efficient than Metal Injection Molding?
Yes, thin-wall injection molding is more energy-efficient than metal injection molding. Thin-wall molding minimizes material usage, which directly translates to reduced energy consumption during production. The process benefits from faster cycle times and shorter cooling periods, reducing the energy demand. Metal injection molding (MIM) involves processing metal powders, which must be mixed with binders and subjected to high temperatures during the sintering process. The step consumes a significant amount of energy due to the high heat required to sinter and cool metals. MIM often requires extended heating and cooling cycles, which further increase energy consumption. Thin-wall injection molding produces lightweight parts using thermoplastics, reducing material waste and allowing for more efficient production.
The higher energy demands involved in the processing of metals are a key factor when compared to Metal Injection Molding.
Does Thin-Wall Injection Molding Provide a Higher Strength-to-Weight Ratio than Gas Assisted Injection Molding?
Yes, thin-wall injection molding generally provides a solid material with a higher strength-to-weight ratio than gas-assisted injection molding, which produces hollow sections that reduce density and stiffness. Thin-wall molding produces lightweight parts with uniformly thin walls, ensuring the part maintains strength and structural integrity despite the reduction in material usage. The process efficiently uses less material while preserving performance. Gas-assisted injection molding involves injecting gas (usually nitrogen) into the mold during the injection process to create hollow sections or voids inside the part. The presence of these voids typically leads to a reduction in strength, as the material in the hollow sections is less dense and does not provide the same load-bearing capacity as solid sections, while this reduces weight. The trade-off between reduced material use and internal voids in gas-assisted molding means that, while it is beneficial for lightweight parts, it often results in a lower strength-to-weight ratio compared to thin-wall injection molding, which maintains greater material density throughout the part. The need for hollow cavities in Gas Assisted Injection Molding results in a trade-off between strength and weight, making it less effective in achieving the same strength-to-weight ratio as thin-wall molding.
